This retrofit Radar Blind Spot monitoring and detection system not only works like an original equipment-based system, it works better!

Newly updated and improved from our original system, Brandmotion’s radar-based system works with any vehicle with plastic fascias (all bumpers except metal bumpers). This system is based on automaker-validated original equipment components, resulting in true OEM-like fit, finish, and performance.

Brandmotion offers the first aftermarket solution to include cross-traffic detection, as well as the first system to eliminate 95% of false triggers common in other systems. Instead of reading the CAN, the system uses the radar (more reliable than GPS) to accurately obtain vehicle speed and is compatible with all vehicle makes and models with plastic bumpers..

Specifications

Working Voltage 12.0V DC / +24.0V DC
Power Consumption 250mA@12V DC
Working Temperature -40C ~ 85C
Storage Temperature -45C ~ 90C
Detection Range 0.15m ~ 120m
Waterproof Rating IP69
Mounting Location Behind rear fasica
Mounting type External mounting bracket, screw
Type of detection 76GHz ~ 77GHz
Trigger wires Left & Right for audio warning

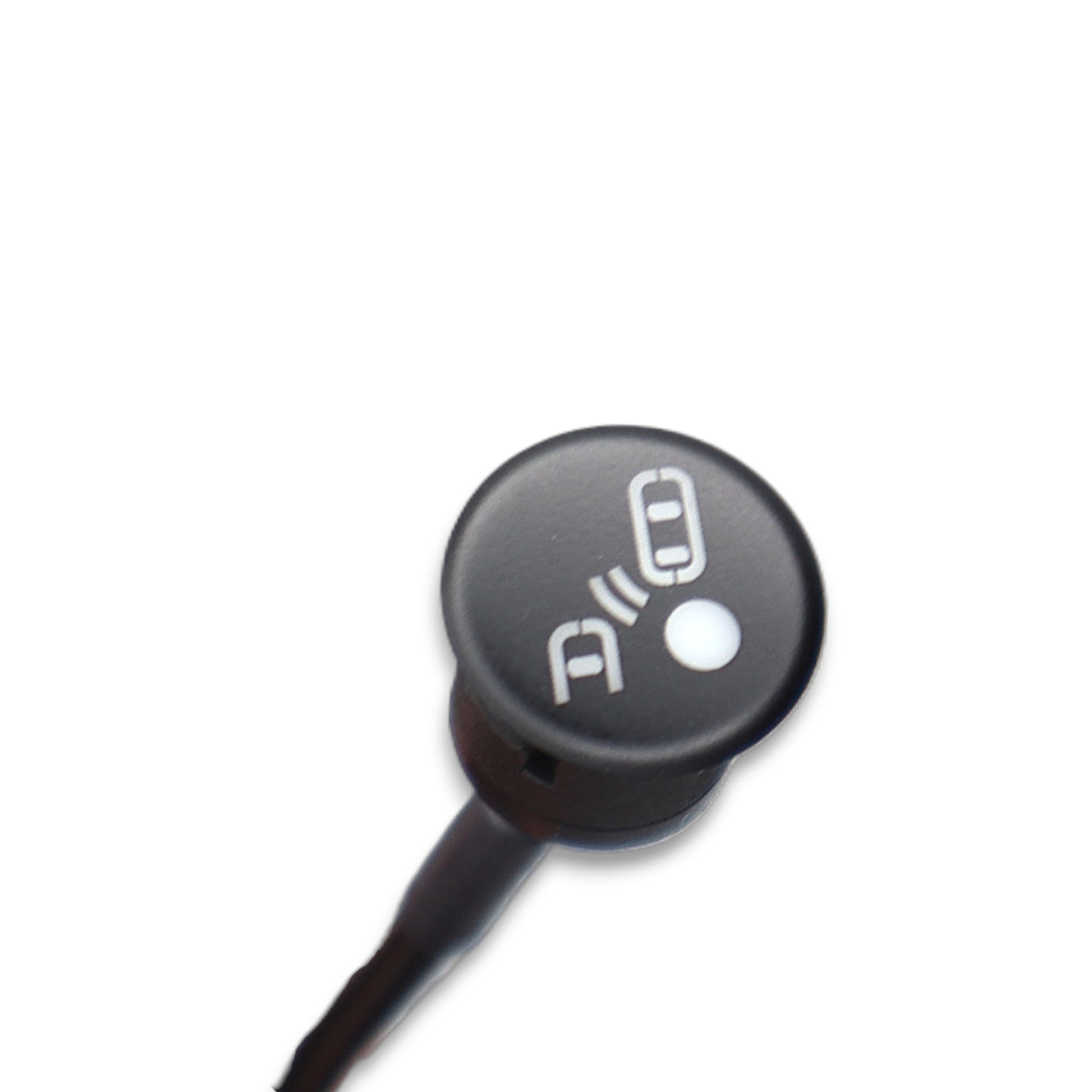

HMI

Working Voltage 12.0V DC / +24.0V DC
Color of warning light Amber
Color of HMI trim Black
Mounting type Drill in
BUZZER

Mounting 3M tape / screws
Buzzer volume >85db
Volume adjustable Yes Hi/Med/Lo
