The Steelmate SBS-2 blind spot detection kit is designed to improve lane-change confidence with a single radar sensor and a no-drill mounting approach for many vehicles.
Built for drivers who want practical protection without a complicated install, the Steelmate SBS-2 offers flexible sensor placement, clear warning output, and dependable detection support in everyday traffic. It can suit passenger cars mounted behind the rear bumper, or certain trucks with steel bumpers using an external-style setup.
Important installation note: if you are fitting the system on a vehicle with a tow bar, position the sensor so the tow bar does not sit inside the detection zone. The radar unit must also remain free from obstruction by metal objects.

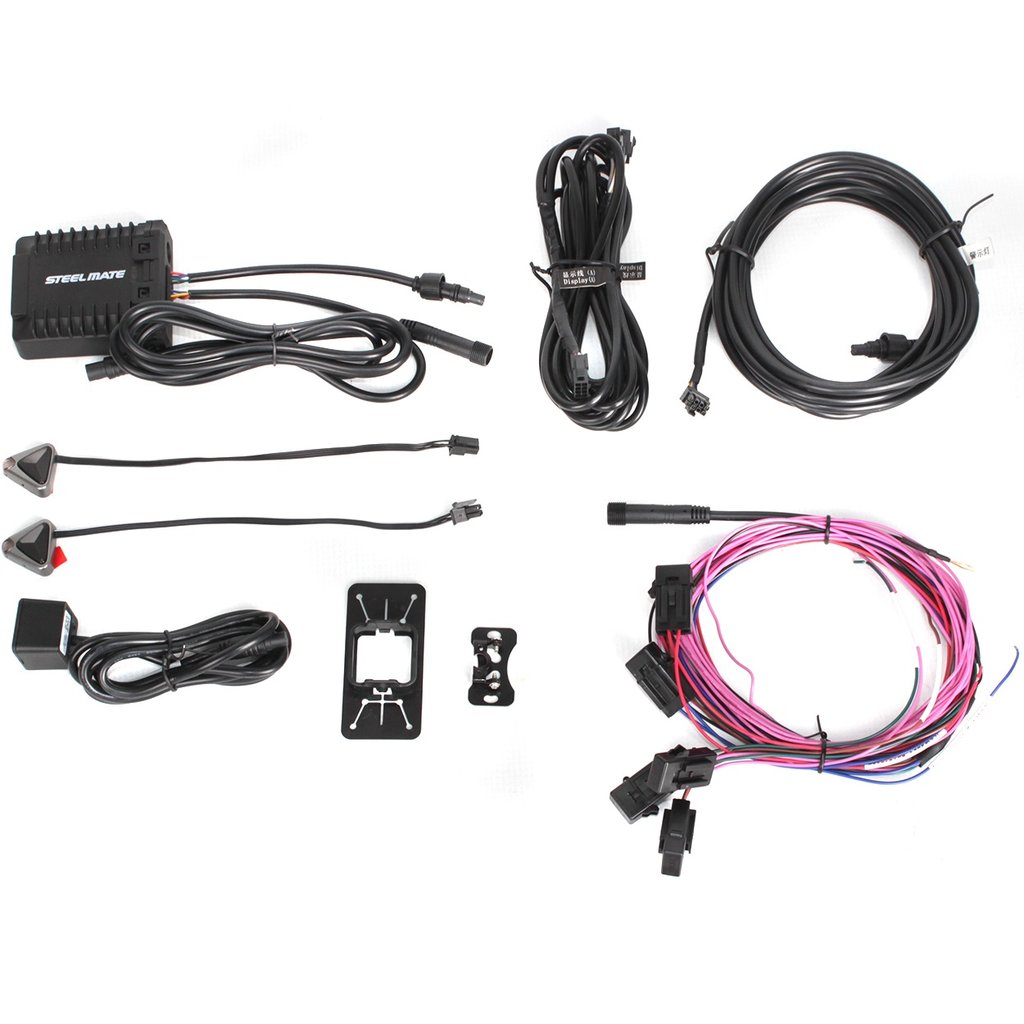

This kit includes 2 LED indicators, 1 radar sensor, the controller ECU, and the required wiring for installation.
Why the Steelmate SBS-2 is a smart blind spot detection upgrade
The Steelmate SBS-2 is built around a streamlined single-sensor concept, helping reduce installation complexity while still supporting side-traffic awareness. It is especially useful for drivers who want an audible and visual alert system that can be adapted to different vehicle types.
-
Visual and audio alerts for clearer driver awareness
-
Audio mute option when you prefer silent operation
-
Indoor indicator display for easier monitoring in poor weather
-
12V vehicle compatibility for standard automotive use
-
Low current draw for efficient operation
Single radar sensor installation and coverage
The sensor uses 77GHz microwave radar and is rated IP67 waterproof, making it suitable for demanding exterior conditions. Its compact design supports a discreet fit, and the system is intended to be installed without drilling a hole in the rear bumper.
When correctly positioned, the sensor can detect vehicles approaching from the left or right side. It is not intended to detect parked vehicles in both directions, traffic in the opposite lane, or vehicles that are overtaking you.
-
Detection range: up to 30 m
-
Suggested installation height: 55 cm +/- 10 cm
-
Sensor quantity: 1 radar unit
-

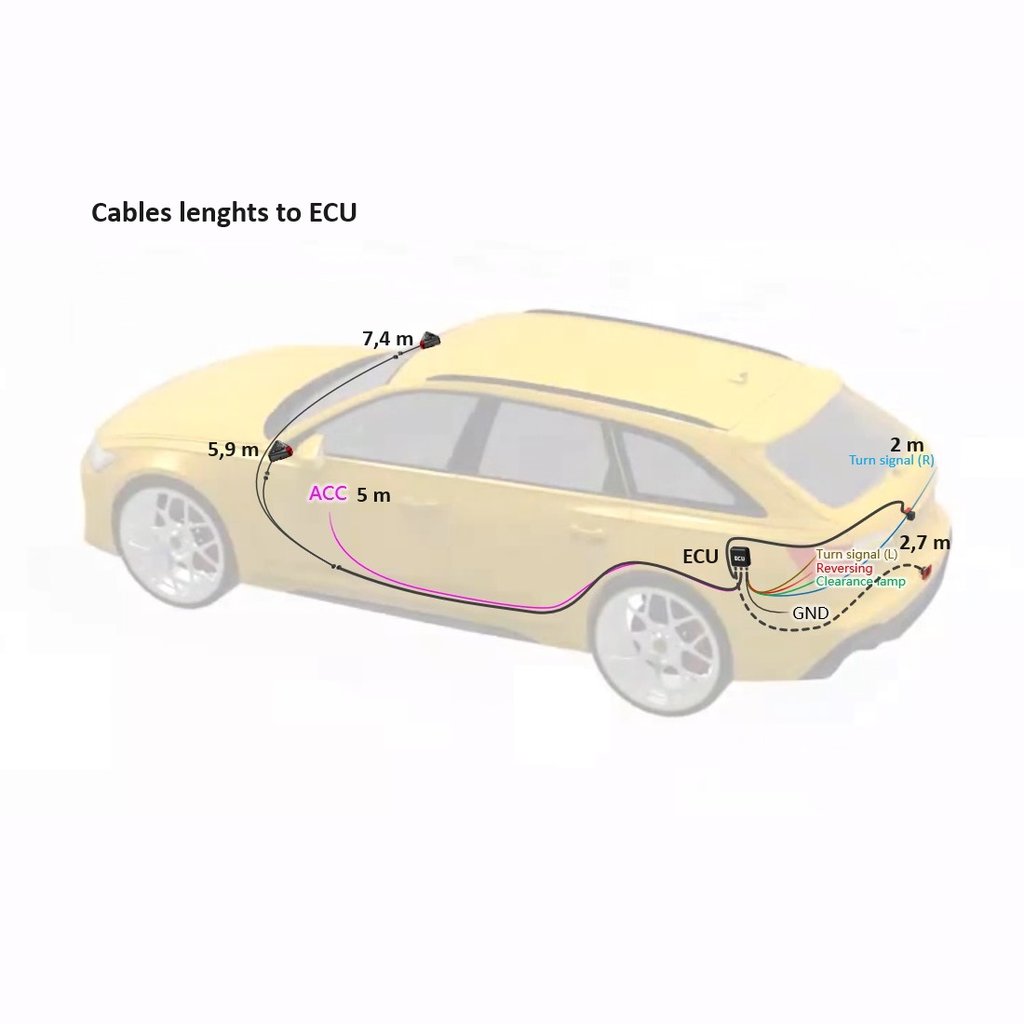

Cable lengths: approx. 5.5 m and 6.5 m

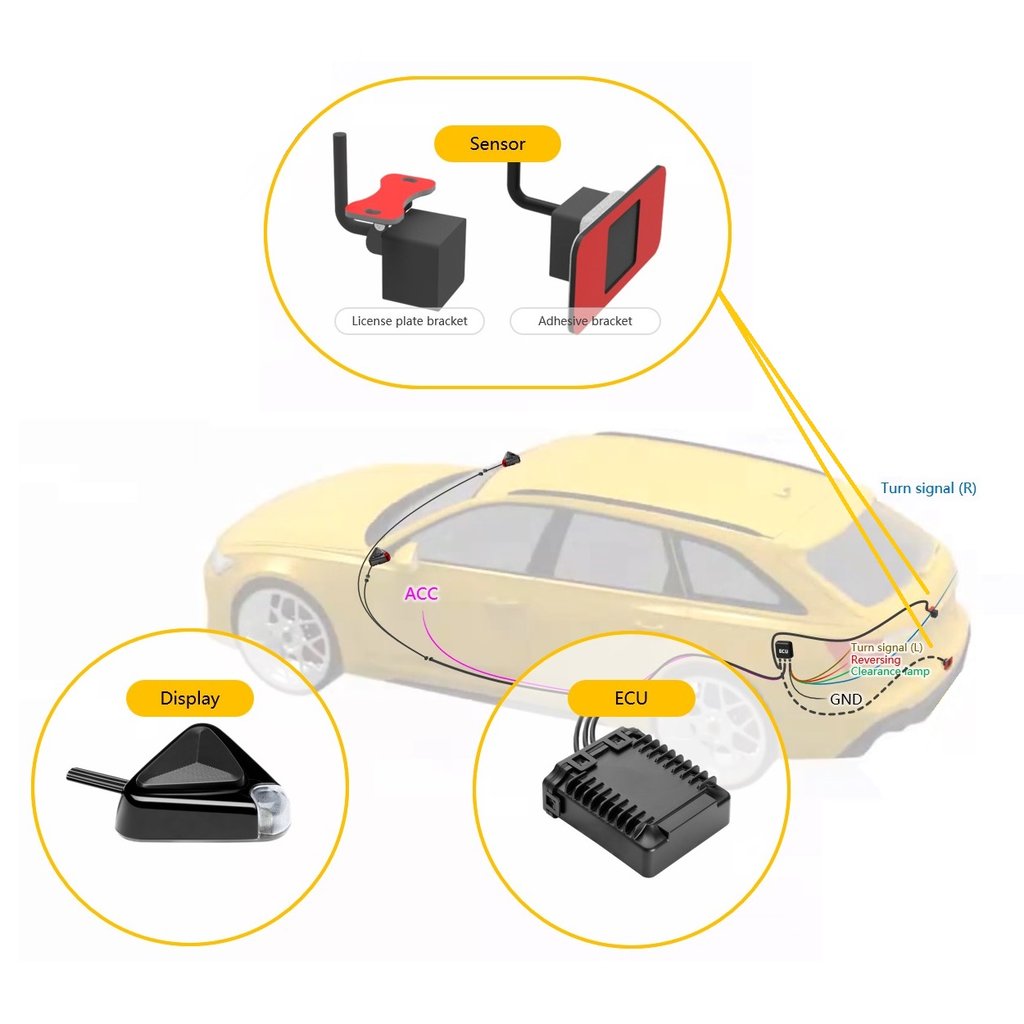

Wiring and vehicle connection points
The harness is designed to integrate with common vehicle signals. The required connection points include ignition, ground, left indicator, right indicator, reverse light, and parking light. This helps the system know when to monitor, alert, and support the driver during normal road use.
Helpful setup tips before road use
- Perform a test drive after installation to confirm detection behavior.
- Make sure the radar view is not blocked by metal accessories or structural parts.
- Check the indicator placement so warnings are easy to see from the driver’s seat.
- Verify sensor height carefully to maintain reliable side monitoring.
Quick comparison: what makes this kit different
Compared with multi-sensor systems, the Steelmate SBS-2 focuses on a simpler layout with fewer installation steps and a versatile mounting concept. That makes it appealing for owners who want a practical blind spot detection solution without unnecessary complexity.
FAQ
Does the system need bumper drilling?
No. The sensor is designed for installation without drilling a hole in the rear bumper in typical applications.
Can the audio warning be turned off?
Yes. The kit supports both visual and audible alerts, and the sound can be disabled if desired.
Is the Steelmate SBS-2 suitable for trucks?
It may be suitable for some trucks with steel bumpers when mounted correctly, provided the sensor is not blocked and the installation height is appropriate.
Looking for a reliable lane-change aid? Choose the Steelmate SBS-2 for a compact, flexible blind spot detection setup backed by radar sensing and practical warning features. Contact us today to order or ask about installation support.
