This is the KEETEC S 2205 door lock actuator. A 5 wire actuator for central locking, with 4kg push and pull force.

4kg is the lightest in the KEETEC range, suited to doors with a free-moving lock mechanism. If the lock feels stiff by hand, or the door is heavy, step up to 7kg or 10kg. An under-powered actuator tends to work in the showroom and fail in February.

The head rotates, which makes it far easier to find a mounting angle inside a door that's already full of glass, wiring and linkages.

Specifications

• 5 wire actuator for central locking
• 4kg push and pull force
• Rotatable head
• Supply voltage 12V, plus or minus 25%
• Clutch rod with Allen screws

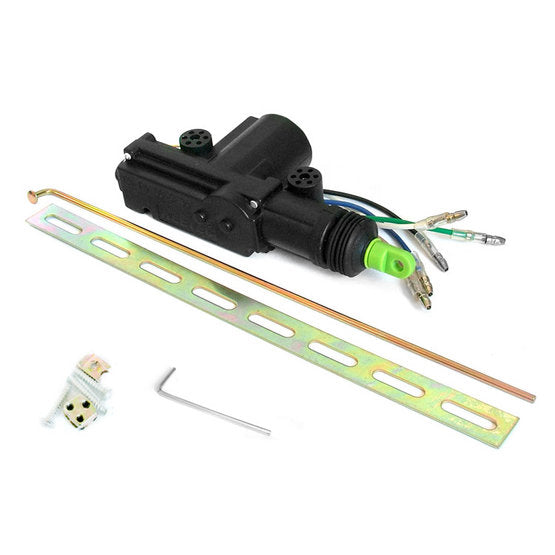

In the box: actuator, rod, bearing plate, clamp, screws, brackets and mounting material.

Stronger versions: the S 2705 at 7kg and the S 2805 at 10kg.
