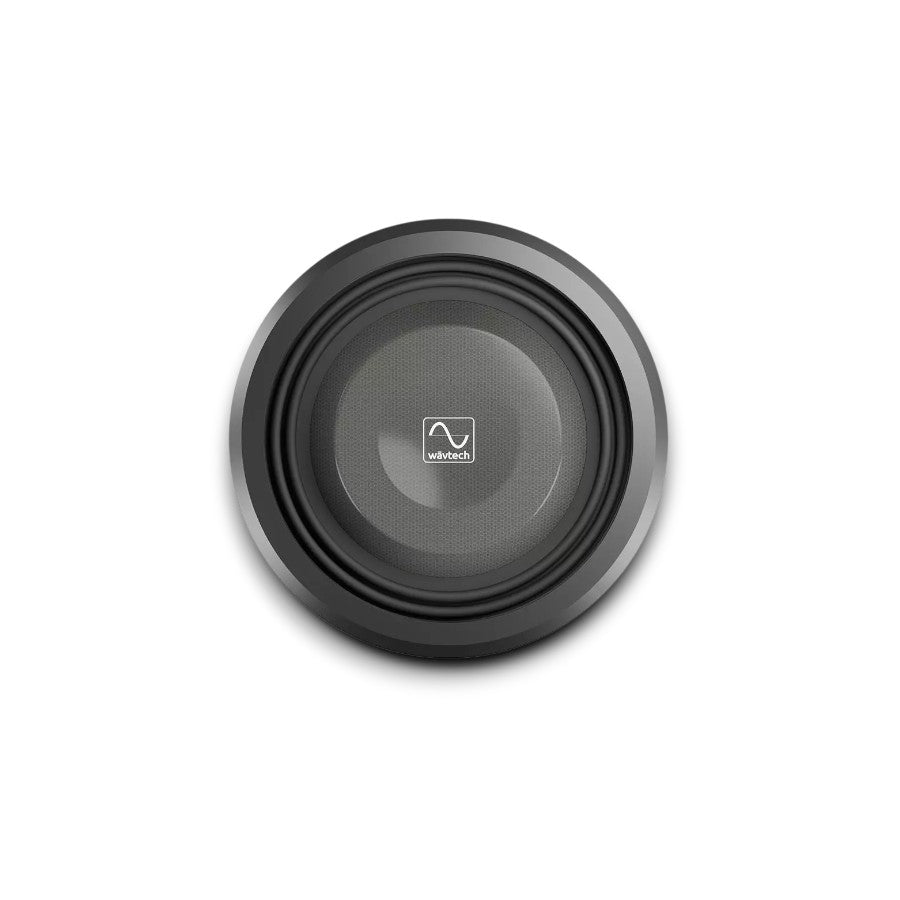

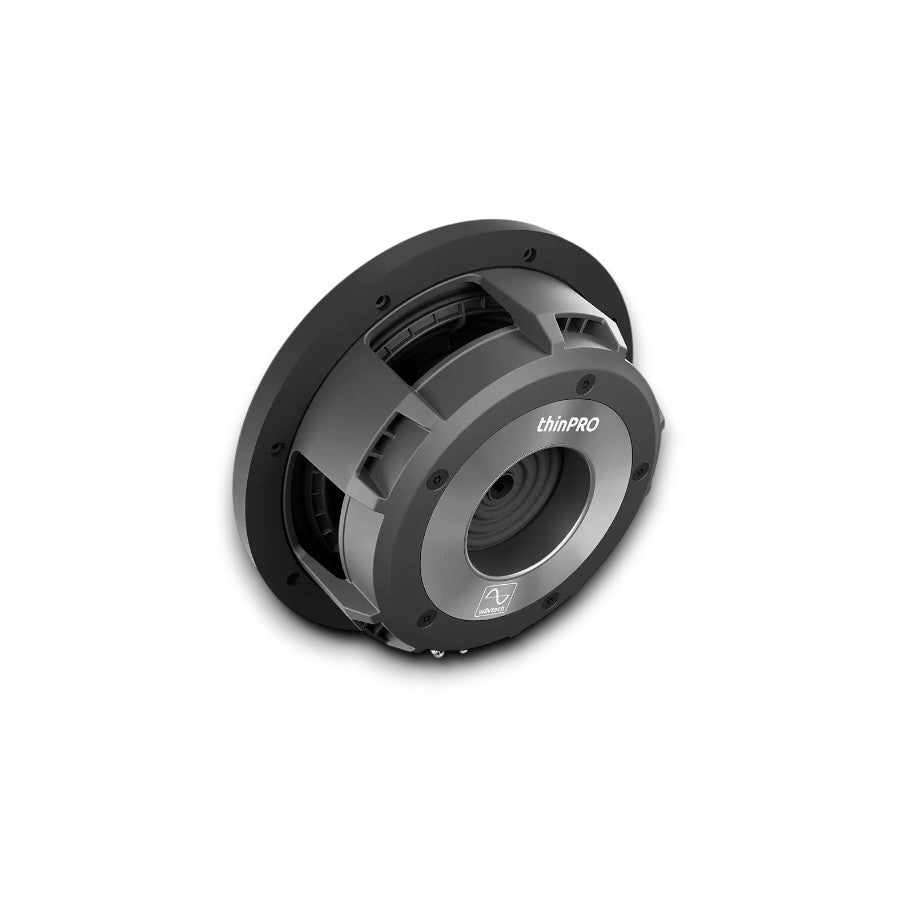

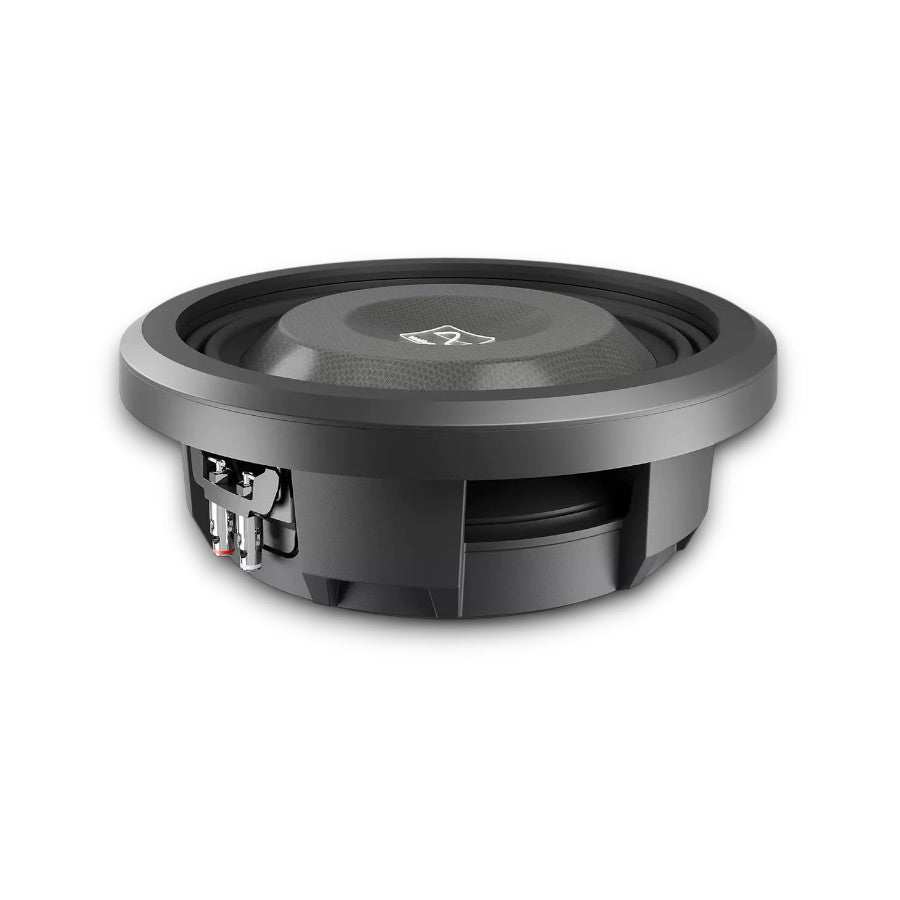

This is the Wavtech thinPRO10-4 10" / 750W RMS / Single 4 Ohm Shallow Subwoofer with Grille.

• The thinPRO10 is the ultimate paradox. There really isn’t anything else like it. Our Patent Pending design changes the game for what is possible with a shallow subwoofer. With a mounting depth of less than 3”, if it won’t fit in the desired location, you probably aren’t putting a subwoofer there. The dual mirrored NBR spiders and axial force transfer assembly allows for unparalleled performance in a multitude of applications.

• The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex® and glass fiber, making it incredibly rigid and very lightweight. The 4.5” voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.

• The point of a shallow subwoofer is maximum performance in a small enclosure. The thinPRO10 is perfect in both small sealed and ported enclosures. Sealed box sizes range from 0.25-0.8cu ft, with the sweet spot at 0.35cu ft. Ported enclosures range from 0.8-1.5cu ft, with 1.0cu ft recommended for optimum performance.

Features:

• 750 Watts RMS Power Handling
• 2.9” Mounting Depth
• 4.5” Voice Coil
• 4-Layer Winding on Vented Polymide Composite Former
• Honeycomb Nomex® and Glass Fiber Cone
• FEA Optimized Dual-Gap Motor Structure
• Double-Roll NBR Surround
• Mirrored Internal NBR Spiders
• 8 AWG Push Terminals
• Vented Cast Aluminum Frame
• Dimensions: 9 1/8in (232mm) Standard 10” cutout

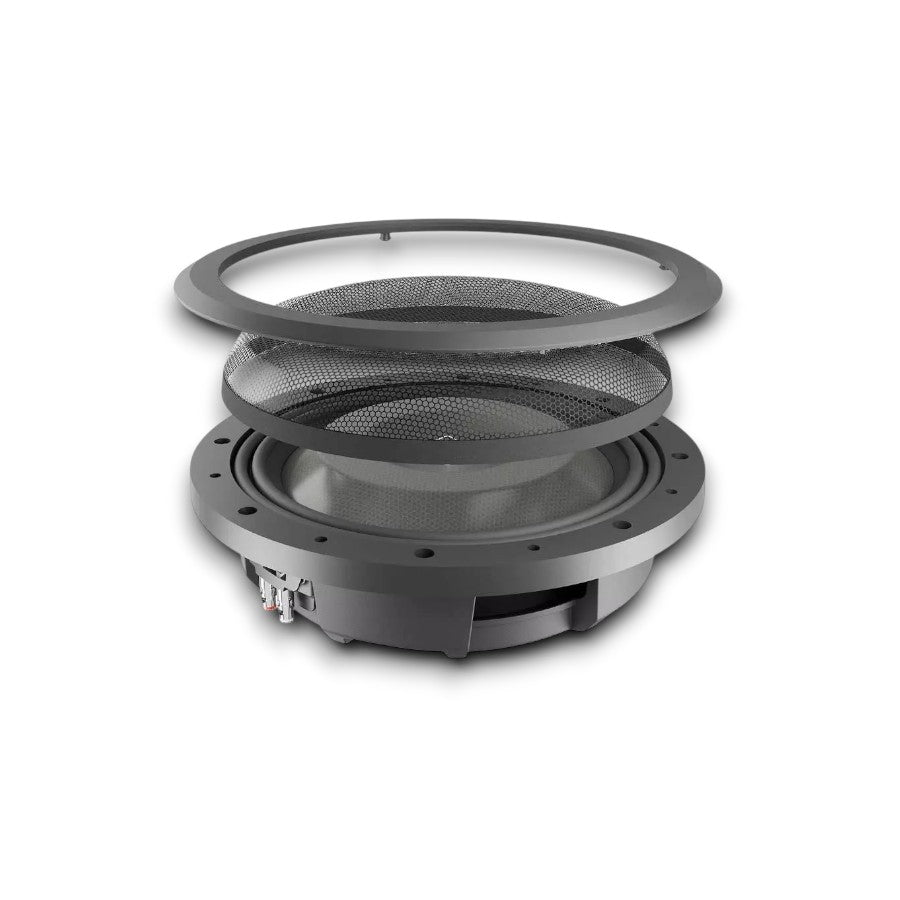

• Protective Grille Included

Specs:

• Nominal Impedance: 4 Ohm
• Power Handling: 750W RMS / 2250W Peak
• Recommended Power Range: 250W-750W RMS
• Frequency Response:
• Voice Coil Diameter: 4.5" (114mm)
• Overall Diameter: 10-13/16" (274.5mm)
• Mounting Depth: 2-7/8" (72.7mm)
• Mounting Hole Diameter: 9-1/16" (230mm)
