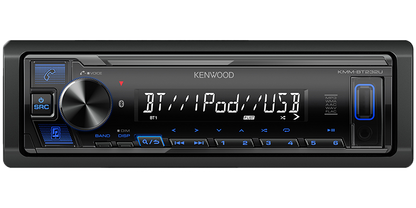

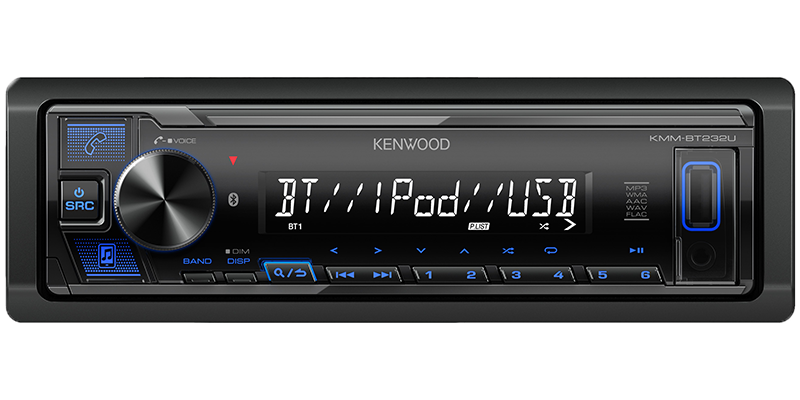

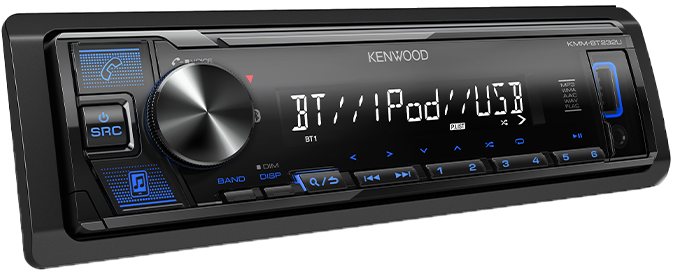

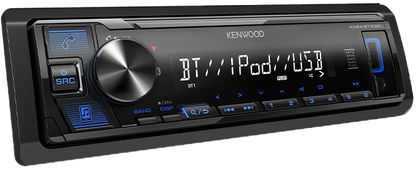

The Kenwood KMM-BT232U is a single-DIN digital media receiver (no CD) with Bluetooth for calls and music streaming and a front USB port.
It has 1 pair of 2.5-volt RCA pre-outs for adding a subwoofer amplifier, and a short chassis that fits shallow dashes.
Key features
- Mechless (no CD), short 100 mm chassis
- Bluetooth 4.2 hands-free and streaming, dual phone connection
- Up to 5 Bluetooth devices connected at once (Music Mix)
- Front USB (1.5A charging) and front AUX
- 13-band EQ and digital time alignment
- FLAC, WAV, MP3, WMA, AAC playback
- KENWOOD Remote app control
- One 2.5V RCA pre-out pair
Specifications
| Mounting |
Single DIN, 100 mm deep |
| Screen |
None (text display) |
| Apple CarPlay & Android Auto |
No |
| CD player |
No |
| Bluetooth |
Version 4.2, two phones |
| USB |
1 x front, 5V 1.5A charging |
| Pre-outs |
1 pair, 2.5 volts |
| Built-in power |
22W x 4 (full bandwidth, <1% THD) |
| HD Radio |
No |
| SiriusXM |
No |
| Steering wheel controls |
Needs an SWC interface |
| Equalizer |
13-band, digital time alignment |
| Hi-res files |
FLAC up to 24-bit/96kHz via USB |
| Illumination |
Blue/white (fixed) |
| Warranty |
1-year Kenwood warranty |
Installation
We install Kenwood stereos at our Markham shop. The installed price shown includes standard labour; the dash kit, wiring harness and any steering-wheel or Maestro interface depend on your vehicle, and we quote them before you book.
Questions
Will it fit my vehicle?
It needs a single-DIN opening, or a dash kit that creates one. Send us your year, make and model and we'll confirm the dash kit and wiring.
Will I keep my steering wheel buttons?
Yes, with the right interface for your vehicle. We'll tell you which one you need.
Do you install it?
Yes, at our Markham shop. Tap Add with installation, or send us your vehicle and we'll quote the parts first.
