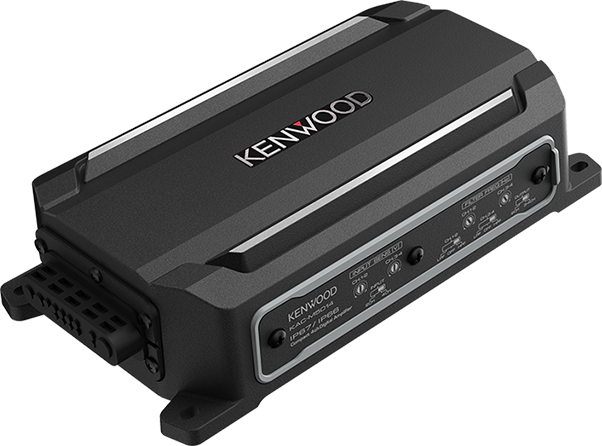

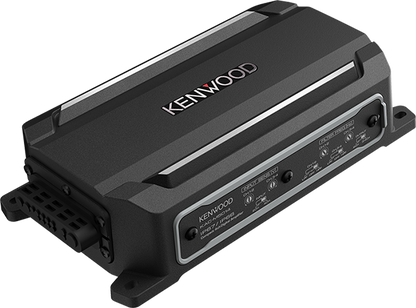

The Kenwood KAC-M5014 is a 4-channel Class D amplifier rated 50W x 4 RMS at 4 ohms and 75W x 4 at 2 ohms.

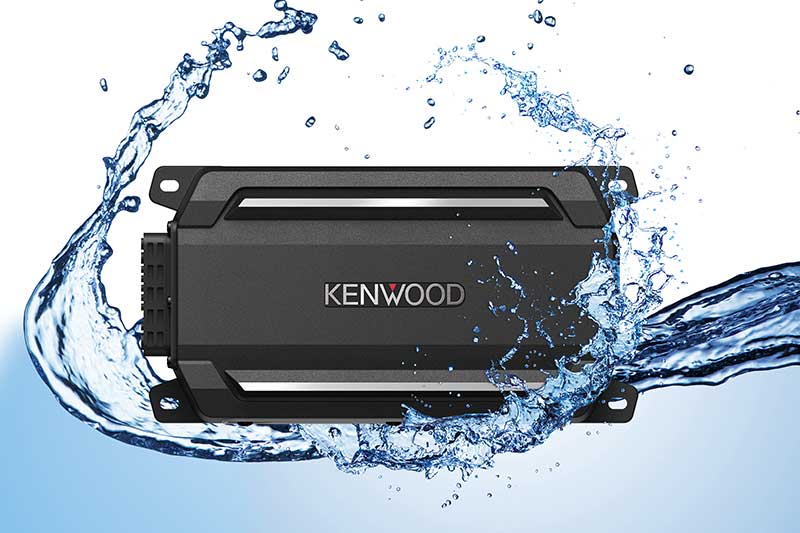

It's sealed to IP66/IP67 in a cast aluminum chassis that passed salt-spray testing, so it suits boats, bikes and UTVs as well as cars. Speaker-level inputs with signal-sensing turn-on let it work with a factory stereo.
Key features
- Waterproof and dustproof (IP66/IP67) 4-channel amp
- 50W RMS x 4 at 4 ohms, 75W x 4 at 2 ohms
- Sealed cast aluminum chassis that passed salt-spray testing
- Speaker-level inputs with signal-sensing turn-on
- Variable high-pass and low-pass filters
- 2ch/4ch input selector
Specifications
| Channels |
4 (bridgeable to 2) |
| Class |
D |
| RMS power, 4 ohms |
50W x 4 (CTA-2006) |
| RMS power, 2 ohms |
75W x 4 |
| Bridged, 4 ohms |
150W x 2 |
| Max power |
600W |
| Inputs |
RCA 0.2-5.0V; speaker-level 4.0-12.0V |
| Crossovers |
HPF/LPF 50-200Hz, -12dB/oct, ch A/B |
| Remote |
None |
| Weatherproofing |
IP66/IP67 (main unit and DC cable) |
| Hi-Res Audio certified |
No |
| Fuse |
40A |
| Current draw |
26A |
| Size (W x H x D) |
198 x 48.5 x 104 mm (7-13/16 x 1-15/16 x 4-1/8 in) |
| Weight |
1.3 kg (2.9 lb) |
| Warranty |
1-year Kenwood warranty |
Questions
Will it work with my factory stereo?
Yes. It has speaker-level inputs and turns on automatically when it senses a signal, so it can run from a factory radio.
What wiring kit do I need?
That depends on the amp's current draw (26A) and where it goes in the vehicle. We'll match the right gauge power kit and fuse when you book the install.
Do you install amplifiers?
Yes, at our Markham shop. We run the power wire to the battery with a fuse, set the gains and crossovers, and test the system before you leave.
