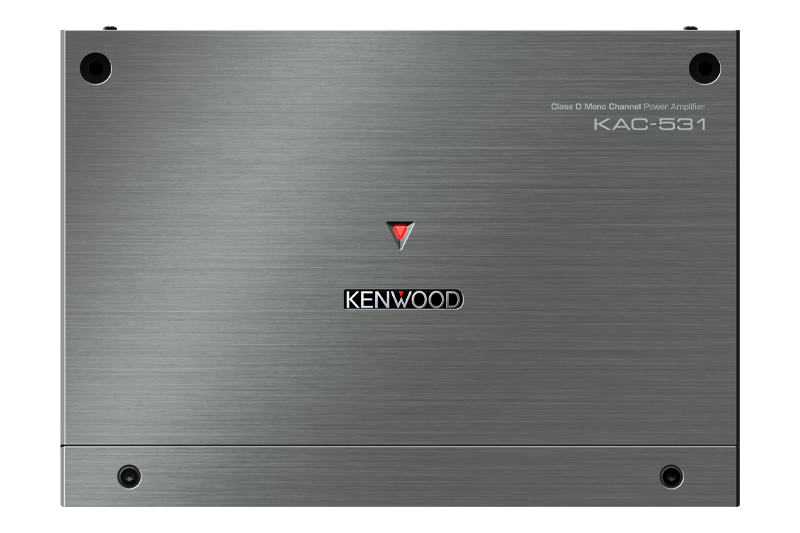

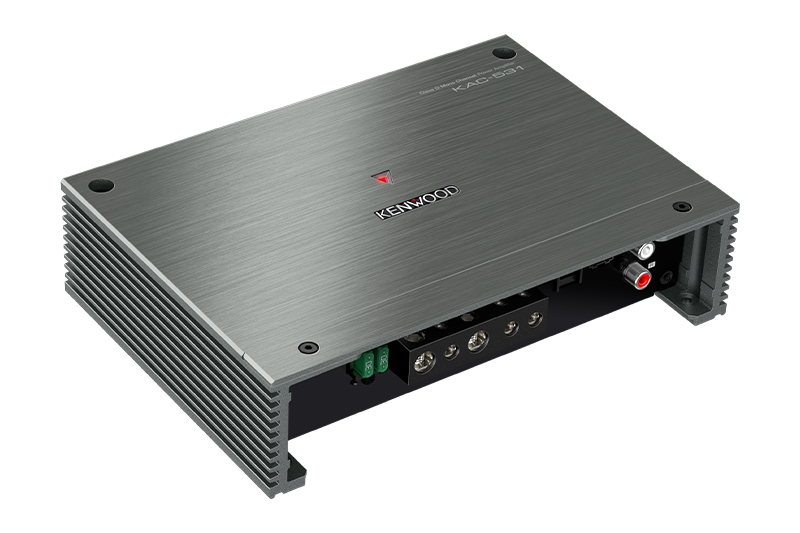

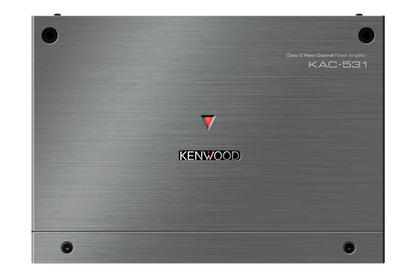

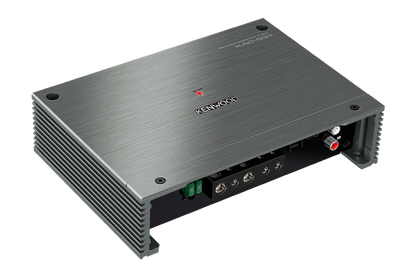

The Kenwood KAC-531 is a mono Class D subwoofer amplifier rated 500 watts RMS at 2 ohms (300 watts at 4 ohms).
Speaker-level inputs with signal-sensing turn-on let it work with a factory stereo. It's ready for the optional KCA-RC01A bass knob (sold separately).
Key features
- Mono Class D sub amp, 500W RMS at 2 ohms, 300W at 4 ohms
- Variable low-pass filter (50-200Hz) and 25Hz infrasonic filter
- Bass boost at 40Hz, up to +18dB
- Speaker-level input harness included; signal-sensing turn-on
- Ready for the optional KCA-RC01A remote bass knob
Specifications
| Channels |
1 (mono) |
| Class |
D |
| RMS power, 4 ohms |
300W x 1 (CTA-2006-D) |
| RMS power, 2 ohms |
500W x 1 |
| Max power |
1000W |
| Inputs |
RCA 0.2-5.0V; speaker-level 4.0-12.0V |
| Crossovers |
LPF 50-200Hz, -24dB/oct; infrasonic filter 25Hz, -24dB |
| Bass boost |
40Hz, 0 to +18dB |
| Remote |
Optional KCA-RC01A (sold separately; the amp is 'Optional Wired Remote Ready') |
| Hi-Res Audio certified |
No |
| Fuse |
30A x 2 |
| Current draw |
28A |
| Wire terminals |
Power/ground terminals accept 4-6 AWG; speaker terminals 8-16 AWG |
| Size (W x H x D) |
213 x 53 x 149 mm (8-3/8 x 2-1/16 x 5-7/8 in) |
| Weight |
1.5 kg (3.3 lb) |
| Warranty |
1-year Kenwood warranty |
Questions
Will it work with my factory stereo?
Yes. It has speaker-level inputs and turns on automatically when it senses a signal, so it can run from a factory radio.
What wiring kit do I need?
That depends on the amp's current draw (28A) and where it goes in the vehicle. We'll match the right gauge power kit and fuse when you book the install.
Do you install amplifiers?
Yes, at our Markham shop. We run the power wire to the battery with a fuse, set the gains and crossovers, and test the system before you leave.
