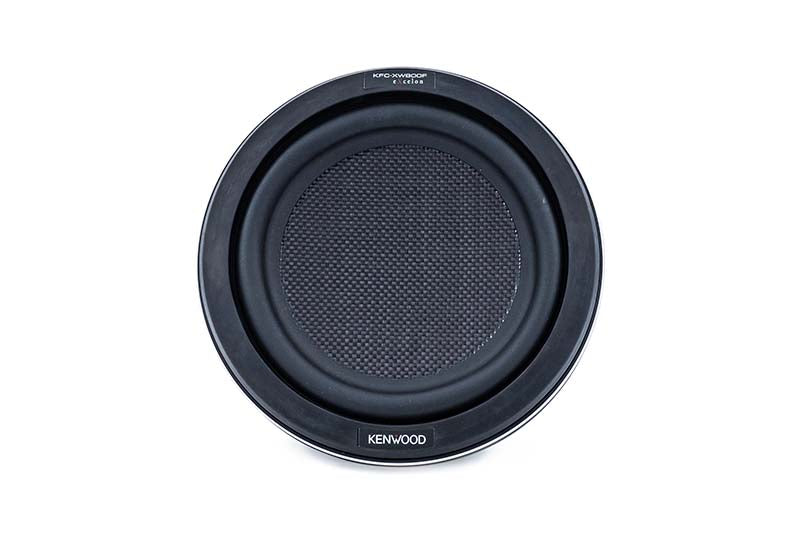

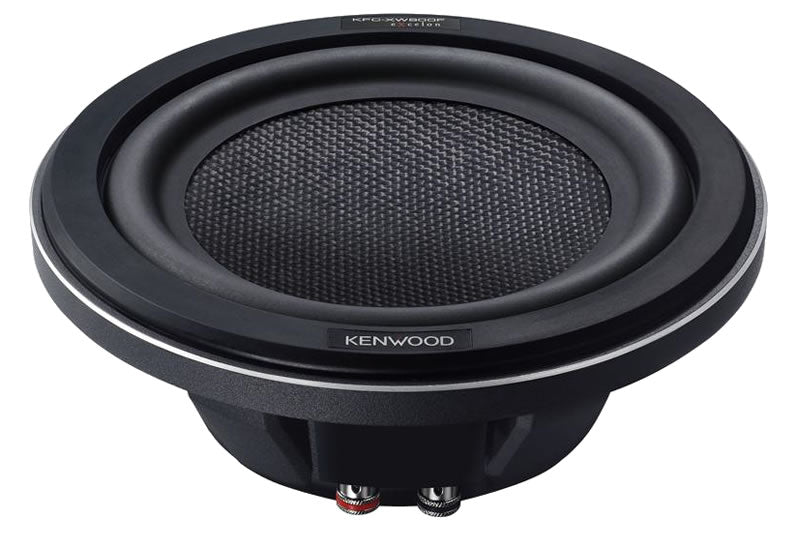

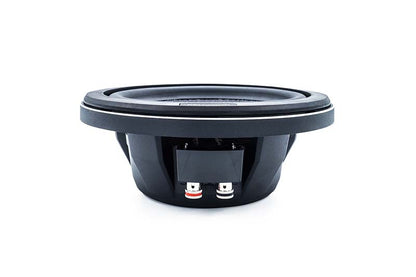

The Kenwood eXcelon KFC-XW800F is an 8" shallow-mount car subwoofer with a single 4-ohm voice coil, rated 150 watts RMS (600 watts peak).
Its mounting depth is only 2-3/4 in, so it fits where a regular sub won't, like under or behind a truck seat.
Key features
- Shallow 2-3/4 in mounting depth
- 150W RMS / 600W peak
- Carbon-glass fibre honeycomb cone
- Cast aluminum basket, dual magnet drive
- Removable rubber ring hides the screws
Specifications
| Size |
8" |
| Voice coil |
SVC 4 ohm |
| Power handling |
150 W RMS / 600 W peak |
| Sensitivity |
78 dB |
| Frequency response |
40-500 Hz |
| Mounting depth |
2-3/4 in (top mount) |
| Cutout diameter |
7-5/16 in |
| Sealed box |
0.5 cu ft |
| Ported box |
0.5 cu ft |
| Cone / surround / basket |
Carbon-glass fibre honeycomb cone / rubber surround / cast aluminum basket |
| Warranty |
2-year Kenwood warranty |
Questions
What box do I need?
Kenwood recommends about 0.5 cu ft sealed or 0.5 cu ft ported. Ask us and we'll recommend a box that fits your vehicle.
What amplifier do I need?
A mono amplifier that delivers about 150 watts RMS at 4 ohms. The eXcelon X503-1 and Kenwood KAC-M5001 are good matches.
Do you install subwoofers?
Yes, at our Markham shop. We run the power wire, fuse it at the battery and tune the amplifier so it sounds clean.
