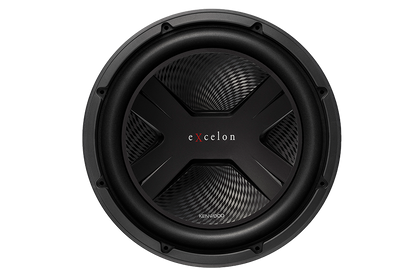

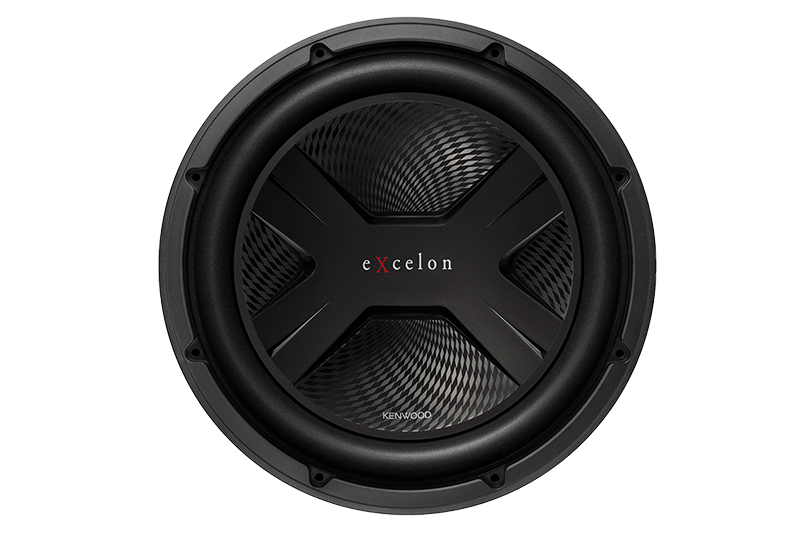

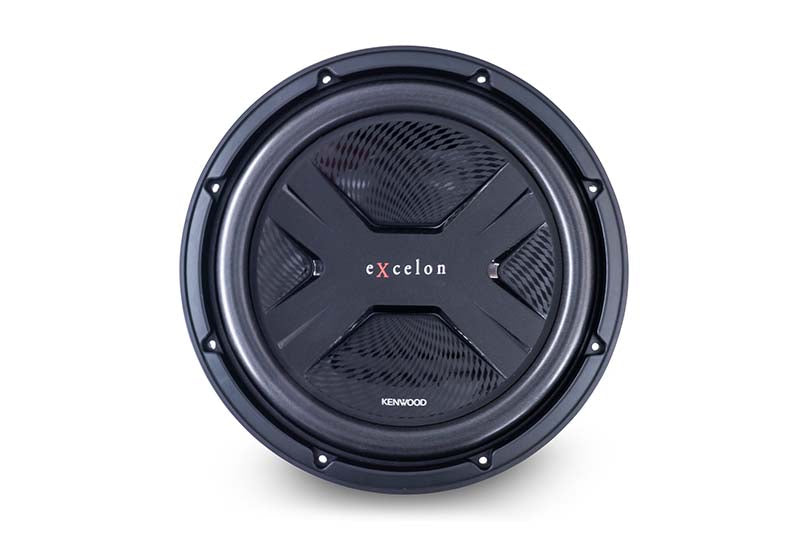

The Kenwood eXcelon KFC-XW1241 is a 12" car subwoofer with a single 4-ohm voice coil, rated 300 watts RMS (2000 watts peak).
It works in a sealed box of about 1.25 cu ft for tight, accurate bass, or a ported box of about 1.5 cu ft for more output. The matching CA-121G grille is sold separately.
Key features
- 300W RMS / 2000W peak
- X-Motif diamond-pattern cone
- Aluminum bobbin and closed yoke for heat management
- Computer-optimized spider
- Power-matched to the eXcelon X502-1 amp
- Fits the optional CA-121G grille
Specifications
| Size |
12" |
| Voice coil |
SVC 4 ohm |
| Power handling |
300 W RMS / 2000 W peak |
| Sensitivity |
85 dB |
| Frequency response |
29-300 Hz |
| Mounting depth |
137 mm (5-3/8 in) |
| Cutout diameter |
279 mm (11 in) |
| Sealed box |
1.25 cu ft |
| Ported box |
1.5 cu ft |
| Cone / surround / basket |
Paper cone with injection-PP X-Motif cap / urethane surround / steel basket |
| Warranty |
2-year Kenwood warranty |
Questions
What box do I need?
Kenwood recommends about 1.25 cu ft sealed or 1.5 cu ft ported. Ask us and we'll recommend a box that fits your vehicle.
What amplifier do I need?
A mono amplifier that delivers about 300 watts RMS at 4 ohms. The eXcelon X503-1 and Kenwood KAC-M5001 are good matches.
Do you install subwoofers?
Yes, at our Markham shop. We run the power wire, fuse it at the battery and tune the amplifier so it sounds clean.
