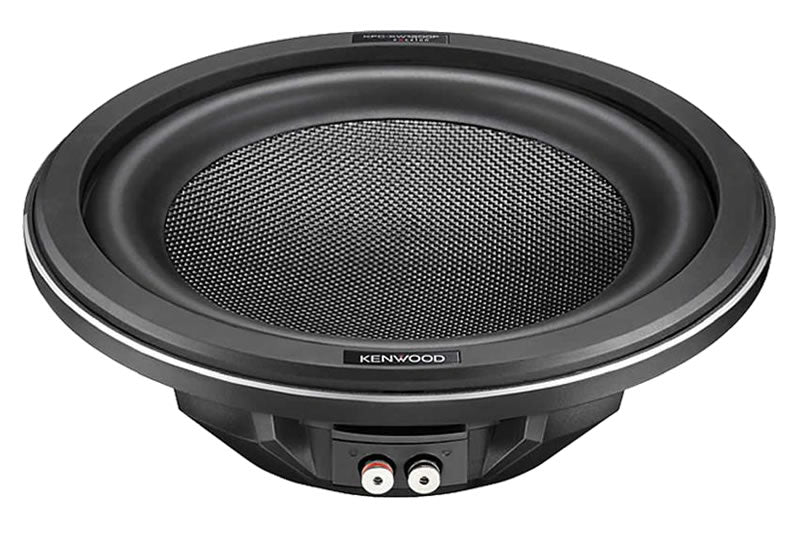

The Kenwood eXcelon KFC-XW1000F is a 10" shallow-mount car subwoofer with a single 4-ohm voice coil, rated 250 watts RMS (1000 watts peak).

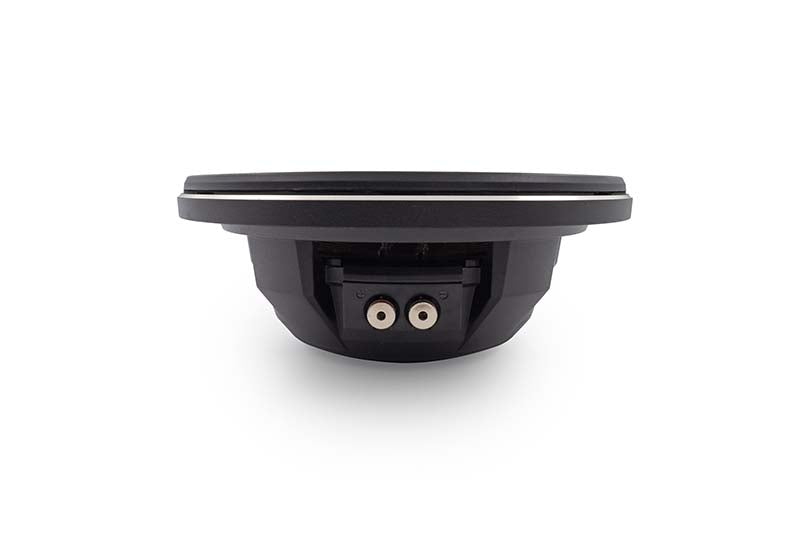

Its mounting depth is only 85 mm (3-3/8 in), so it fits where a regular sub won't, like under or behind a truck seat.
Key features
- About 40% slimmer than a standard sub, for under or behind truck seats
- 250W RMS / 1000W peak, 90 dB
- Carbon-glass fibre honeycomb cone
- Die-cast aluminum basket, stress-free spider
- Spring terminals take up to 10 AWG wire
Specifications
| Size |
10" |
| Voice coil |
SVC 4 ohm (DCR 3 ohm, 50 mm coil) |
| Power handling |
250 W RMS / 1000 W peak |
| Sensitivity |
90 dB |
| Frequency response |
35-800 Hz |
| Mounting depth |
85 mm (3-3/8 in) top |
| Cutout diameter |
9-1/4 in (235 mm) |
| Sealed box |
0.6 cu ft |
| Ported box |
0.6 cu ft |
| Cone / surround / basket |
Carbon-glass fibre honeycomb cone / rubber surround / die-cast aluminum basket |
| Warranty |
2-year Kenwood warranty |
Questions
What box do I need?
Kenwood recommends about 0.6 cu ft sealed or 0.6 cu ft ported. Ask us and we'll recommend a box that fits your vehicle.
What amplifier do I need?
A mono amplifier that delivers about 250 watts RMS at 4 ohms. The eXcelon X503-1 and Kenwood KAC-M5001 are good matches.
Do you install subwoofers?
Yes, at our Markham shop. We run the power wire, fuse it at the battery and tune the amplifier so it sounds clean.
