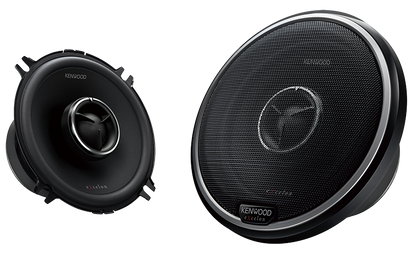

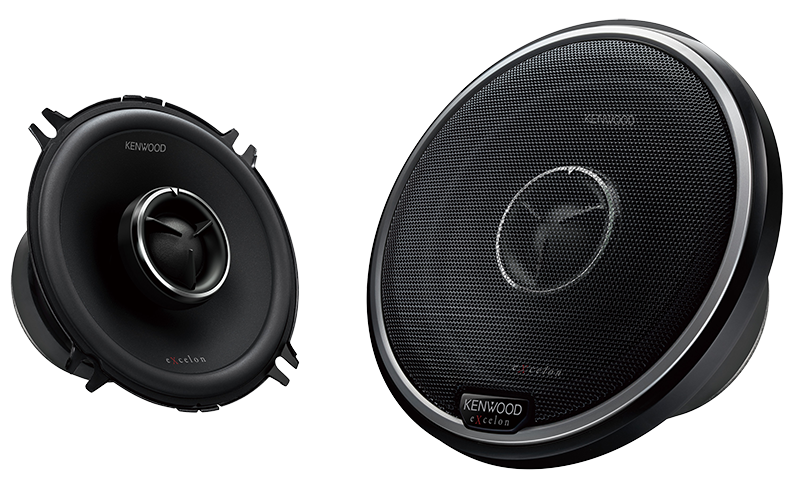

The Kenwood eXcelon KFC-X135 is a pair of 5.25" 2-way coaxial speakers.
They handle 40 watts RMS (160 watts peak) with 86 dB sensitivity, a good match for a factory or aftermarket stereo. As eXcelon speakers they carry Kenwood's 2-year warranty.
Key features
- Oversized 130 mm polypropylene woofer
- Stiffer cone material for accurate sound
- 1" soft-dome tweeter
- 40W RMS / 160W peak, CTA-2031 rated
- 2-year eXcelon warranty
Specifications
| Size |
5.25" |
| Type |
Coaxial, 2-way |
| Power handling |
40 W RMS / 160 W peak |
| Sensitivity |
86 dB |
| Impedance |
4 ohms |
| Frequency response |
71 Hz - 21 kHz |
| Woofer cone |
Injection-moulded polypropylene |
| Surround |
Rubber |
| Tweeter |
1" (25 mm) soft dome, neodymium |
| Mounting depth |
60 mm (2-3/8") |
| Cutout |
120 mm (4-3/4") |
| Warranty |
2-year Kenwood warranty |
In the box
2 grilles, 8 screws, 8 speed nuts, speaker cords, adhesive tape
Installation
We install speakers at our Markham shop. Most vehicles need a speaker adapter and a wiring harness so nothing is cut; we match both to your vehicle before you arrive.
Questions
Will these fit my car?
5.25" is the speaker size. Whether it fits also depends on the mounting depth, 60 mm (2-3/8"), and the opening in your door or dash. Send us your year, make and model and we'll confirm fit and the adapters you need.
Do I need an amplifier?
No. They run fine on a factory or aftermarket stereo. An amplifier gives them more headroom and clearer sound at higher volume.
Do you install speakers?
Yes, at our Markham shop, with the adapters and harness matched to your vehicle.
