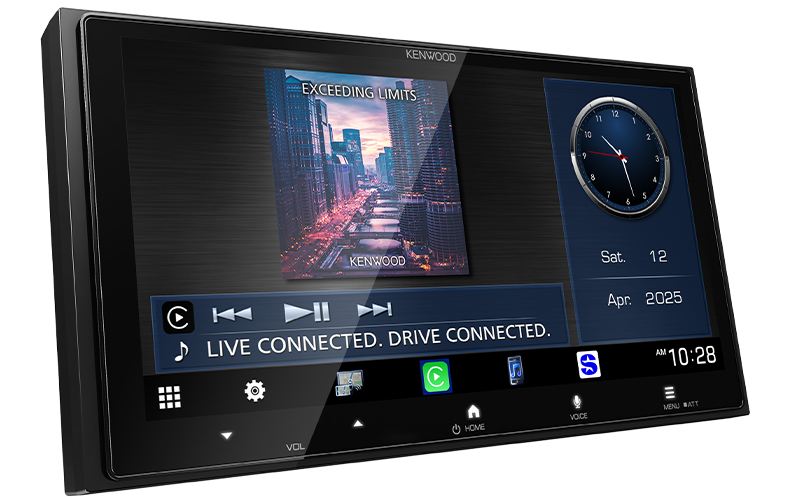

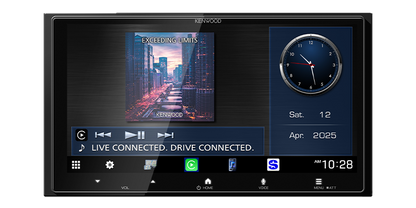

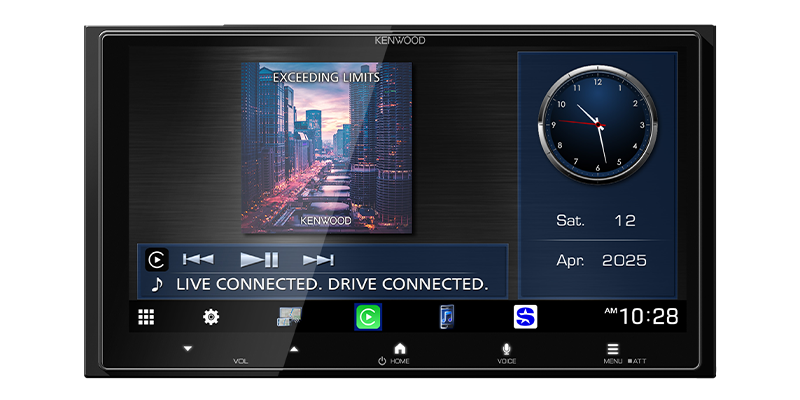

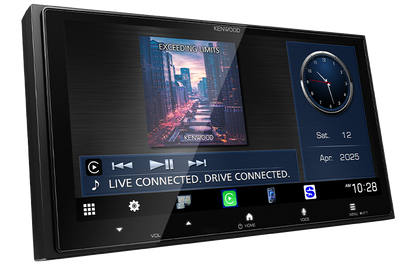

The Kenwood DMX8710S is a double-DIN multimedia receiver with a 6.9-inch HD capacitive touchscreen and wireless and wired Apple CarPlay and Android Auto.
It works with iDatalink Maestro to keep steering wheel buttons and factory features in many vehicles, adds an HDMI input, and supports Kenwood's HD backup camera.
Key features
- 6.92-inch HD 1280x720 capacitive touchscreen
- Wireless and wired Apple CarPlay and Android Auto
- Wireless mirroring (CarbitLink app)
- HDMI Type-D input
- 2 camera inputs, HD rear camera ready (CMOS-740HD)
- iDatalink Maestro RR/RR2 ready, plus K40/Escort radar integration
- 13-band EQ, time alignment, 2-way/3-way crossover
- Bluetooth 5.3 with dual phone; dual-band Wi-Fi
Specifications
| Mounting |
Double DIN, 109 mm deep |
| Screen |
6.9" capacitive touchscreen, HD 1280x720 |
| Apple CarPlay & Android Auto |
Wireless and wired |
| CD player |
No |
| Bluetooth |
Version 5.3, two phones |
| USB |
1 x rear (1 m cable), 5V 2.1A charging |
| Pre-outs |
3 pairs, 3 volts |
| HD Radio |
No |
| SiriusXM |
Ready (tuner sold separately) |
| HDMI input |
Type-D x 1 (KCA-HD200 cable sold separately) |
| Camera inputs |
2 (rear RCA, HD 720p with CMOS-740HD; front via AV-IN jack) |
| iDatalink Maestro |
Yes |
| Steering wheel controls |
Needs an SWC interface or iDatalink Maestro |
| Equalizer |
13-band, digital time alignment |
| Hi-res files |
FLAC/WAV up to 24-bit/192kHz |
| Warranty |
1-year Kenwood warranty |
Installation
We install Kenwood stereos at our Markham shop. The installed price shown includes standard labour; the dash kit, wiring harness and any steering-wheel or Maestro interface depend on your vehicle, and we quote them before you book.
Questions
Will it fit my vehicle?
It needs a double-DIN opening, or a dash kit that creates one. Send us your year, make and model and we'll confirm the dash kit and wiring.
Will I keep my steering wheel buttons?
Yes, with the right interface for your vehicle: an iDatalink Maestro module also keeps factory features like the backup camera in many vehicles.
Do you install it?
Yes, at our Markham shop. Tap Add with installation, or send us your vehicle and we'll quote the parts first.
