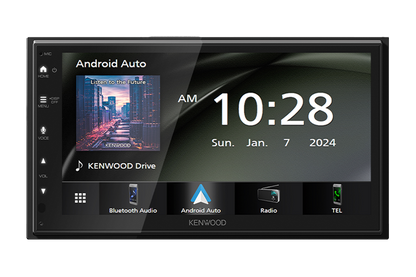

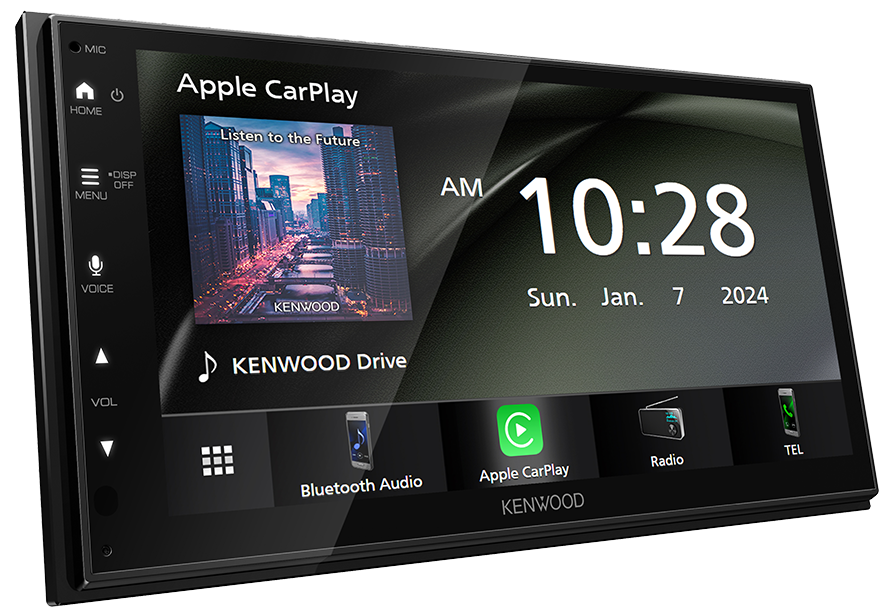

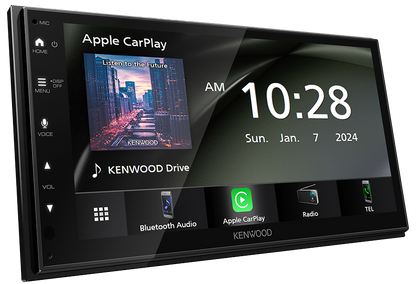

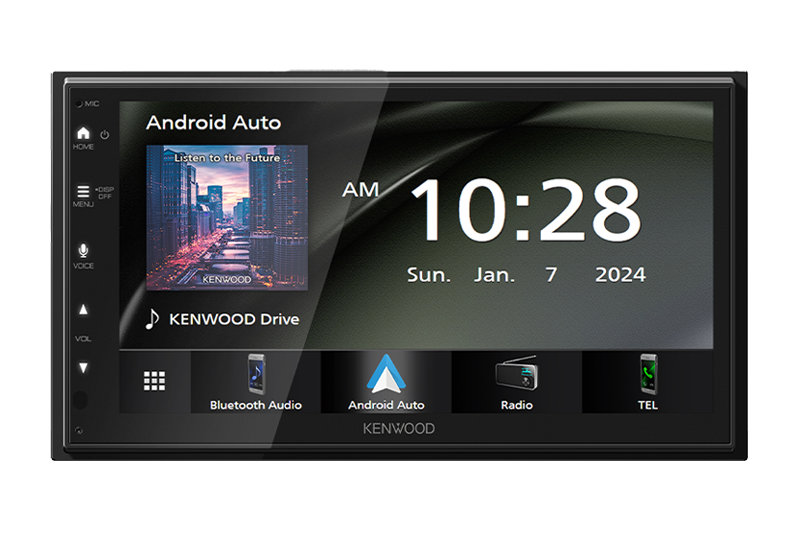

The Kenwood DMX4710S is a double-DIN multimedia receiver with a 6.8-inch WSVGA capacitive touchscreen and wired Apple CarPlay and Android Auto.
It works with iDatalink Maestro to keep steering wheel buttons and factory features in many vehicles, and has a short 86 mm chassis that leaves room for wiring and interfaces behind the dash. If you want wireless CarPlay, step up to the DMX5710S.
Key features
- 6.8-inch WSVGA capacitive touchscreen
- Wired Apple CarPlay and Android Auto
- Short 86 mm chassis leaves room for wiring and interfaces
- iDatalink Maestro RR/RR2 ready
- Rear camera input with adjustable guidelines
- Three 2.5V pre-out pairs (front, rear, sub)
- 13-band EQ, time alignment, crossover
- Bluetooth 5.0, SiriusXM-ready
Specifications
| Mounting |
Double DIN, 86 mm deep |
| Screen |
6.8" capacitive touchscreen, WSVGA 1024x600 |
| Apple CarPlay & Android Auto |
Wired |
| CD player |
No |
| Bluetooth |
Version 5.0 |
| USB |
1 x rear, 5V 2.1A charging |
| Pre-outs |
3 pairs, 2.5 volts |
| Built-in power |
22W x 4 (full bandwidth, <1% THD) |
| HD Radio |
No |
| SiriusXM |
Ready (tuner sold separately) |
| Camera inputs |
1 rear (composite RCA); no HD camera support |
| iDatalink Maestro |
Yes |
| Steering wheel controls |
Needs an SWC interface or iDatalink Maestro |
| Equalizer |
13-band, digital time alignment |
| Hi-res files |
FLAC/WAV up to 24-bit/192kHz |
| Warranty |
1-year Kenwood warranty |
Installation
We install Kenwood stereos at our Markham shop. The installed price shown includes standard labour; the dash kit, wiring harness and any steering-wheel or Maestro interface depend on your vehicle, and we quote them before you book.
Questions
Will it fit my vehicle?
It needs a double-DIN opening, or a dash kit that creates one. Send us your year, make and model and we'll confirm the dash kit and wiring.
Will I keep my steering wheel buttons?
Yes, with the right interface for your vehicle: an iDatalink Maestro module also keeps factory features like the backup camera in many vehicles.
Do you install it?
Yes, at our Markham shop. Tap Add with installation, or send us your vehicle and we'll quote the parts first.
