Kenwood CMOS-230 Universal Backup Camera
$198.00 CAD
CMOS-230
Regular price
$198.00 CAD
Sale price
$198.00 CAD
Regular price
Unit price
per
Shipping calculated at checkout.
Payment methods
Learn how to use this product.

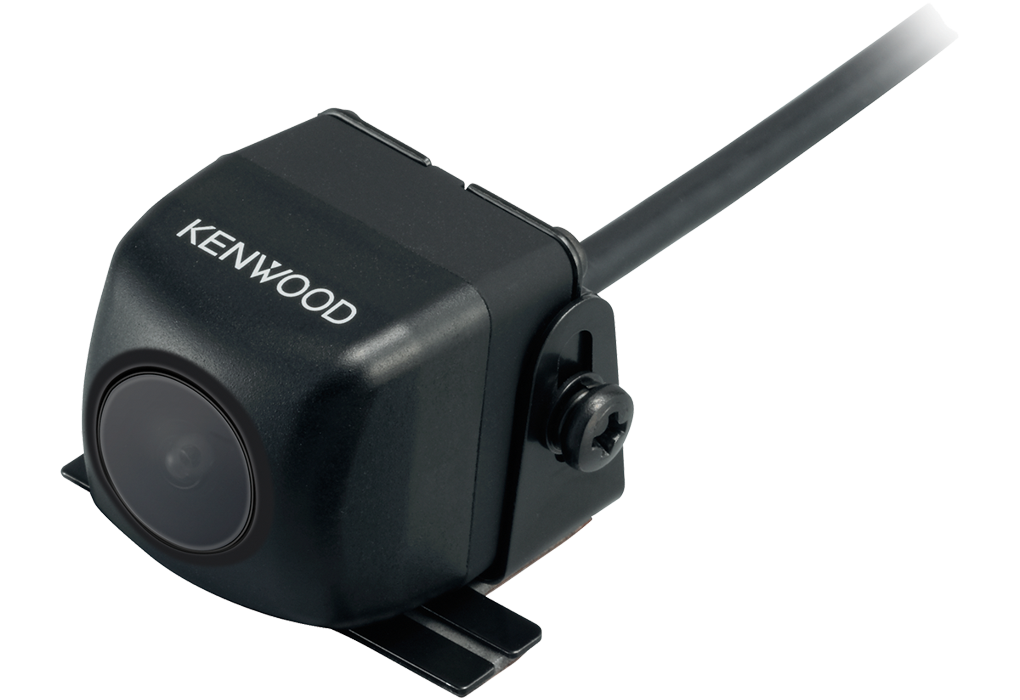

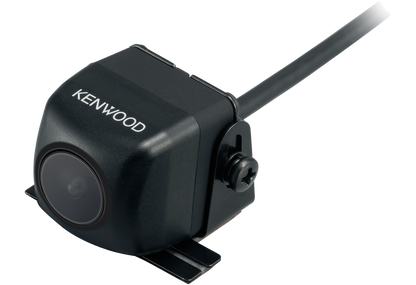

The Kenwood CMOS-230 is a tiny backup camera, under an inch on each side, with a wide 128-degree mirror-image view. It plugs into any stereo with an RCA rear-camera input and is made for Kenwood multimedia receivers.
The housing is waterproof, the bracket is adjustable, and a 7.5 m (24.6 ft) extension cable is included to reach the dash.
Key features
- Tiny camera, under 1 in cube
- Wide 128 deg mirror-image view
- Waterproof housing with flexible mount
- 24.6 ft extension cable included
- Standard RCA composite output
Specifications
| Sensor | 1/3.6 in colour CMOS, about 330,000 effective pixels |
|---|---|
| Viewing angle | About 128 deg horizontal / 103 deg vertical |
| Video output | NTSC composite, RCA, mirror image |
| Cables | 1.5 m (4.92 ft) camera cord + 7.5 m (24.6 ft) power/video extension |
| Mounting | Surface mount, flexible bracket; plate mount optional |
| Size | 23.4 x 23.4 x 23.9 mm, 21 g |
| Warranty | 1-year Kenwood warranty |
Questions
Will it work with my stereo?
It works with any stereo or screen that has an RCA (composite) rear-camera input, including most Kenwood multimedia receivers.
Does it show parking lines?
The camera doesn't draw lines itself. Many Kenwood receivers can add guide lines on screen.
Do you install backup cameras?
Yes, at our Markham shop. We mount the camera, route the cable through the vehicle and wire it to reverse.
