Expert Verdict (2026) - Why Buy?
"The Vinland V13R1A09N-MRR-CH3 is the premier 2026-tech overhaul for the 2013-2018 Dodge Ram 1500/2500/3500 equipped with the factory 8.4-inch screen and Auto Climate Controls. At Lockdown Security, we designate this as the ultimate 'Luxury-Trim' upgrade. Unlike base model trucks, these high-spec Rams integrate climate and seat heating controls directly into the touchscreen. The V13R1A09N is specifically engineered to bridge this gap: by bundling the iDatalink Maestro ADS-MRR and the CH3 harness, you maintain full control of your heated seats, dual-zone climate, and steering wheel buttons on a much more advanced 9-inch QLED display. It provides the modern Wireless CarPlay and Android Auto experience without sacrificing the high-end factory features you paid for."

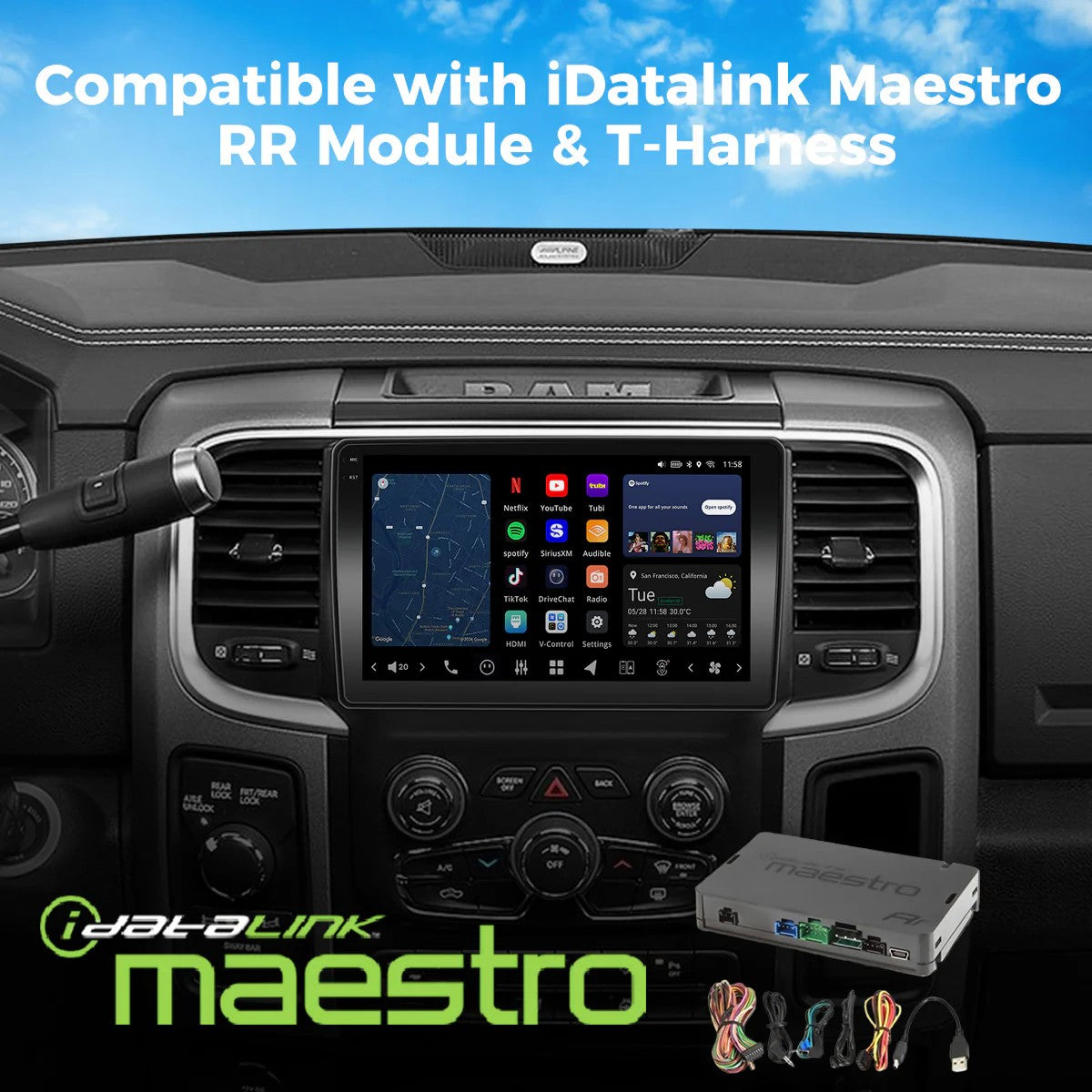

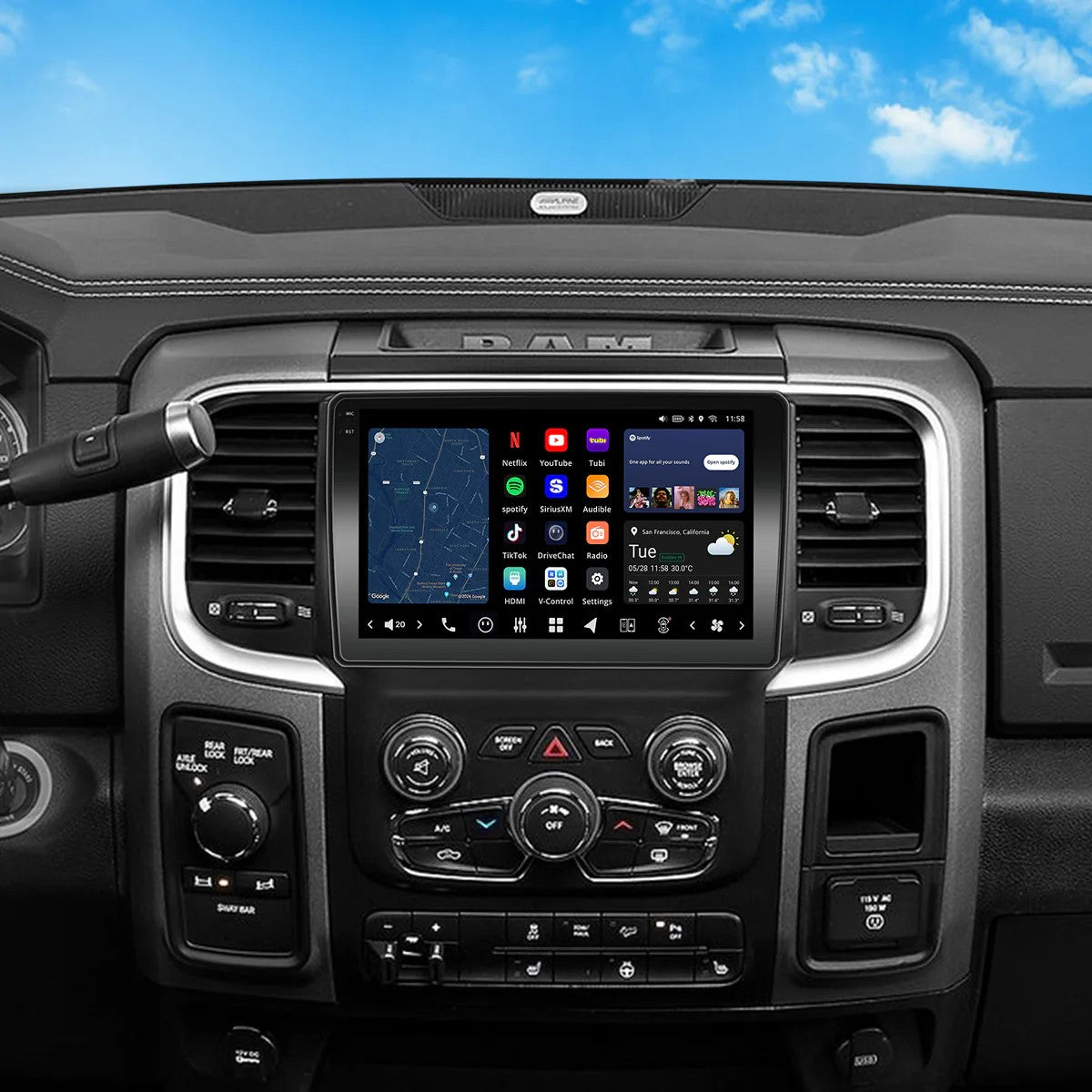

This is the VINLAND V13R1A09N Custom Fit Car Stereo for the 2013-2018 RAM 1500. It includes the iDatalink Maestro ADS-MRR interface and the RAM vehicle specific wiring harness.
This product also includes the vehicle specific mounting kit (dash trim kit).
Please see product specifications below:
Performance
Operating System: Android 13
Processor
Qualcomm® SM6125 8-Core CPU
Qualcomm Adreno™ 610 GPU
Memory & Storage: 8GB RAM + 128GB ROM
Display
Screen
QLED 1280 × 720 touchscreen
Brightness: 550 cd/m²
Connectivity
Internet Connection: 4G LTE, WiFi Hotspot
WiFi
Dual-band 2.4GHz / 5GHz
WiFi Hotspot 2.0 support
Bluetooth
Dual Bluetooth, Bluetooth 5.0
Supported codecs: aptX, aptX HD
Audio
Built-in Amplifier / DSP: Max: 4 × 49W, RMS: 4 × 29W
DSP & EQ: 36-band EQ, 8 presets, time correction, crossover tuning
Radio
FM/AM Tuner
FM: 65–108MHz
AM: 522–1710kHz
RDS decoder, stereo DAC
Media Format Support
Audio: WAV, MP3, MP2, FLAC, APE, AAC
Video
1080p@30fps - MPEG-4
1080p@ 30fps - MPEG-2
1080p@30fps - VP8/VP9
1080p@30fps - HEVC /H.265
720p@30fps
Inputs & Outputs
USB Ports
1 × USB for recording
1 × USB for external storage
Audio Output
6 × RCA: Front / Rear / Sub (4V/10kΩ)
Digital Audio Output
1 × SPDIF optical (TOSLINK)
1 × Coaxial RCA
Video Input
1 × Auxiliary video input
1 × HDMI video input
Camera Input
1 × Front recording cam
1 × Rear recording cam
1 × Front Cam (Non-recording)
1 × Rear Cam (Non-recording)
