Firstech FTI-CDK1 | T-Harness for Chrysler/Dodge/Jeep/RAM TIP START Vehicles - Lockdown Security
T-harness

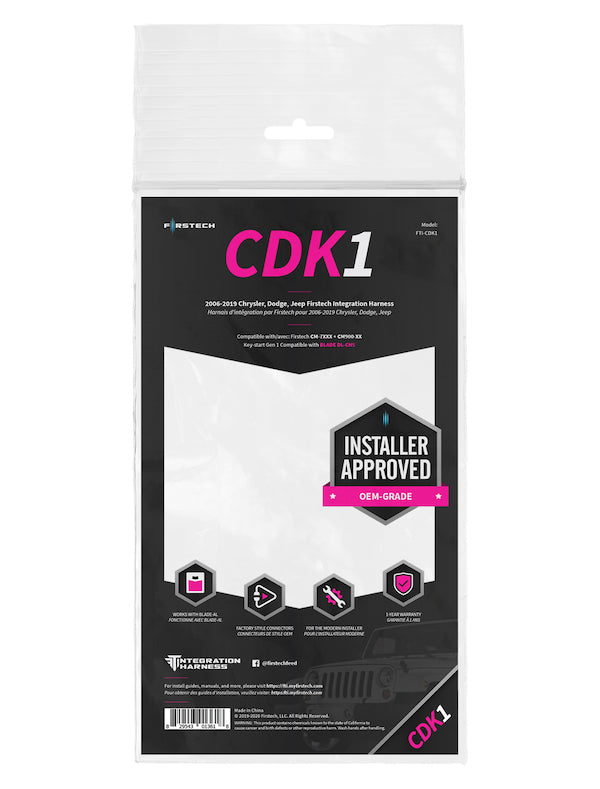

Firstech FTI-CDK1 T-Harness for Chrysler/Dodge/Jeep/RAM TIP START Vehicles

Plug-in harness for a Compustar remote starter

Harness
$44.00 CAD
$44.00 CAD

The T-harness only. The Compustar controller and the BLADE-AL bypass aren’t included: get the kit with all three, or add them on their own.

Book the install Text us your year, make and model
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

A T-harness plugs into your vehicle’s own connectors and into the Compustar controller, so there’s far less wiring than a hardwired install. Check your vehicle below: it’s Firstech’s own list for this harness.

  • Plugs into your vehicle’s own connectors
  • Works with Compustar CM-X, CM9S, CM9L, CM7 and CM900
  • Needs an iDatalink BLADE-AL bypass (not included)
  • Or get the kit: controller, bypass and harness together
  • Lifetime installation warranty when we install it
  • Free shipping on orders over $200
Firstech coverage

Check your vehicle

Every vehicle Firstech lists for the FTI-CDK1. Key start.

  • 21 models
  • 4 makes

Chrysler7 models
Dodge7 models
Jeep6 models
Mitsubishi1 model
  • Raider2007–2009 Key start

    Listed by Firstech. Text us your year and trim and we’ll confirm it before you order.

Source: Firstech’s installer wiring lookup for the FTI-CDK1, read October 23, 2026. Firstech lists the vehicles a harness is wired for; options and trims can still change what’s needed, so text us if you’re not sure.

Compatibility

What it works with

The FTI-CDK1 is the T-harness only. It plugs into a Compustar CM-X controller (or a CM9S, CM9L, CM7 or CM900) and needs an iDatalink BLADE-AL bypass flashed with DL-CH5 firmware. The CDK1-CMX-BLADEAL kit has all three in one box.

Controllers it plugs into

  • CM-XWorks with itCompustar’s current remote start and security controller, and the one in our kits.See the CM-X · $118.00 CAD
  • CM9S or CM9LWorks with itFirstech’s remote-start-only controllers. The CM9L is for low-current vehicles only.
  • CM7 or CM900Works with itOlder Compustar controllers. Already have one? It takes this harness.

What else you need

  • The CDK1-CMX-BLADEAL kit The Compustar CM-X, the BLADE-AL and the FTI-CDK1 T-harness in one box. $270.00 CAD See the kit
  • iDatalink BLADE-AL The bypass this harness needs, flashed with DL-CH5 firmware for your vehicle.
    • DL-CH5
    See it on its own · $108.00 CAD

Add-ons

  • A Compustar remote kitMore range than your factory remote, and a 2-way remote confirms the start. Each kit lists the controllers it works with: look for the CM-X (FT-CMX-HC).See the remote kits

The details

The Firstech FTI-CDK1 is a plug-in T-harness for key start Chrysler, Dodge, Jeep and Mitsubishi vehicles, 2005 to 2018. It connects a Compustar remote starter to your vehicle’s own connectors, so most of the install is plugs going together instead of cut and spliced wires. Firstech lists it for 21 models.

This is the harness only, not a remote starter. It has no electronics of its own.

Vehicles it fits

  • Chrysler: 200 (2011–2014), 300 (2005–2007), Aspen (2007–2010), PT Cruiser (2006–2010), Sebring, Sebring Convertible, Sebring Sedan (2007–2010)
  • Dodge: Avenger (2008–2014), Caliber (2007–2012), Charger (2006–2007), Dakota (2007–2011), Durango (2007–2010), Magnum (2005–2007), Nitro (2007–2011)
  • Jeep: Commander (2006–2007), Compass (2007–2018), Grand Cherokee (2005–2007), Liberty (2008–2012), Patriot (2007–2017), Wrangler JK (2007–2018)
  • Mitsubishi: Raider (2007–2009)

Key start versions only. This is Firstech’s own list for the FTI-CDK1, from their installer lookup. Trims and options can change what’s needed, so check your exact vehicle in the list near the top of this page, or text us your year, make and model.

What else you need

  • Controller: a Compustar CM-X (FT-CMX-HC), the one in our kits. It also plugs into the CM9S, CM9L, CM7 and CM900.
  • Bypass: an iDatalink BLADE-AL flashed with DL-CH5 firmware. Not included.

Starting from scratch? The CDK1 kit has the CM-X, the BLADE-AL and this harness in one box, and we flash the BLADE-AL for your vehicle before it ships. Buy the harness on its own when you already have the controller and bypass, or need to replace a harness.

Starting it

On many vehicles, three presses of lock on your factory remote start it, so a remote is optional. For more range, or a 2-way remote that confirms the start, add a Compustar remote kit that lists the CM-X. To start it from your phone, add the DRONE X2-LTE.

Installing it

We install it at our Markham shop or on-site in the GTA, with our lifetime installation warranty. Book an install. Doing it yourself? The harness plugs into the vehicle’s own connectors, but expect to make a few connections too. Text us your year, make and model with any questions.

Specs

SKU
FTI-CDK1

Installing it

Buy it from us and we can install it for you, or you can do it yourself.

At our shop or at your place

Drop it off or wait at our Markham shop, or we come to you in the GTA. Most installs can be done on-site; a few need the shop.

Lifetime installation warranty

Every install we do comes with our lifetime installation warranty.

Before it ships

BLADE-AL flashed for your vehicle

Tell us your year, make and model at checkout and we flash the BLADE-AL with the right firmware before it ships.

Installing it yourself?

Plenty of our customers do. A T-harness plugs into the vehicle’s own connectors, but expect to make a few connections too. Check your vehicle in the list above before you start, and text us your year, make and model with any questions.

Remote starter terms

What customers say

Verified reviews from our customers.

Testimonials

  • Exceptionally Helpful

    They were exceptionally helpful despite me going down the DIY route having never installed a remote starter before. There was no T harness kit available for my vehicle which led to a few questions which they thankfully were very helpful with. Mission remote start was successful and I'm super pleased.

    Stephen Anthony
    DIY Client

  • 10 out of 10

    I would recommend Lockdown security 10 out of 10 times. Leo and his team were professional, fast acting and provided excellent service. I am very happy with my remote starter.

    Jay
    Enjoying a warm vehicle!

  • Responsive, Easy to Use

    Have been using Lockdown Security for years. Just ordered the fifth remote starter from them and installed myself. Their website is easy to use and intuitive. They are responsive and more than willing to answer questions for the DIY customers. Would strongly recommend to anyone looking to purchase a remote starter.

    Ayad
    DIY Client

Common questions

Will it fit my vehicle?

Check your vehicle in the list near the top of this page. It’s Firstech’s own list for this harness, from their installer lookup, and every vehicle we have a page for links to it with our pick. Not listed? Search by vehicle, or text us your year, make and model.

Is the remote starter included?

No. This is the T-harness only. It needs a Compustar controller (CM-X, CM9S, CM9L, CM7 or CM900) and an iDatalink BLADE-AL bypass. What it works with shows both, and the kit that has all three in one box.

Should I buy the kit or the harness on its own?

If you don’t have a Compustar controller yet, get the kit: the CM-X, the BLADE-AL and this harness together, with the BLADE-AL flashed for your vehicle before it ships. The harness on its own is for when you already have the controller and bypass, or need to replace a harness.

What firmware does the BLADE-AL need?

It’s under What it works with, from Firstech’s data for this harness. Buying the BLADE-AL or the kit from us? Tell us your year, make and model and we flash it before it ships.

What’s a take-over harness?

An add-on for the FTI-TLP2, FTI-TLP3 and FTI-TLP4 on Toyota and Lexus push-start vehicles. It keeps the engine running when you get in and drive away after a remote start. It plugs into the T-harness, so you need both.

Do you install it?

Yes, at our Markham shop or on-site in the GTA, with our lifetime installation warranty. Book an install.

Do you ship across Canada?

Yes. Shipping is free on orders over $200, and $10 under that.

Not sure it fits?

Text us your year, make and model and we’ll confirm the right harness before you order.
