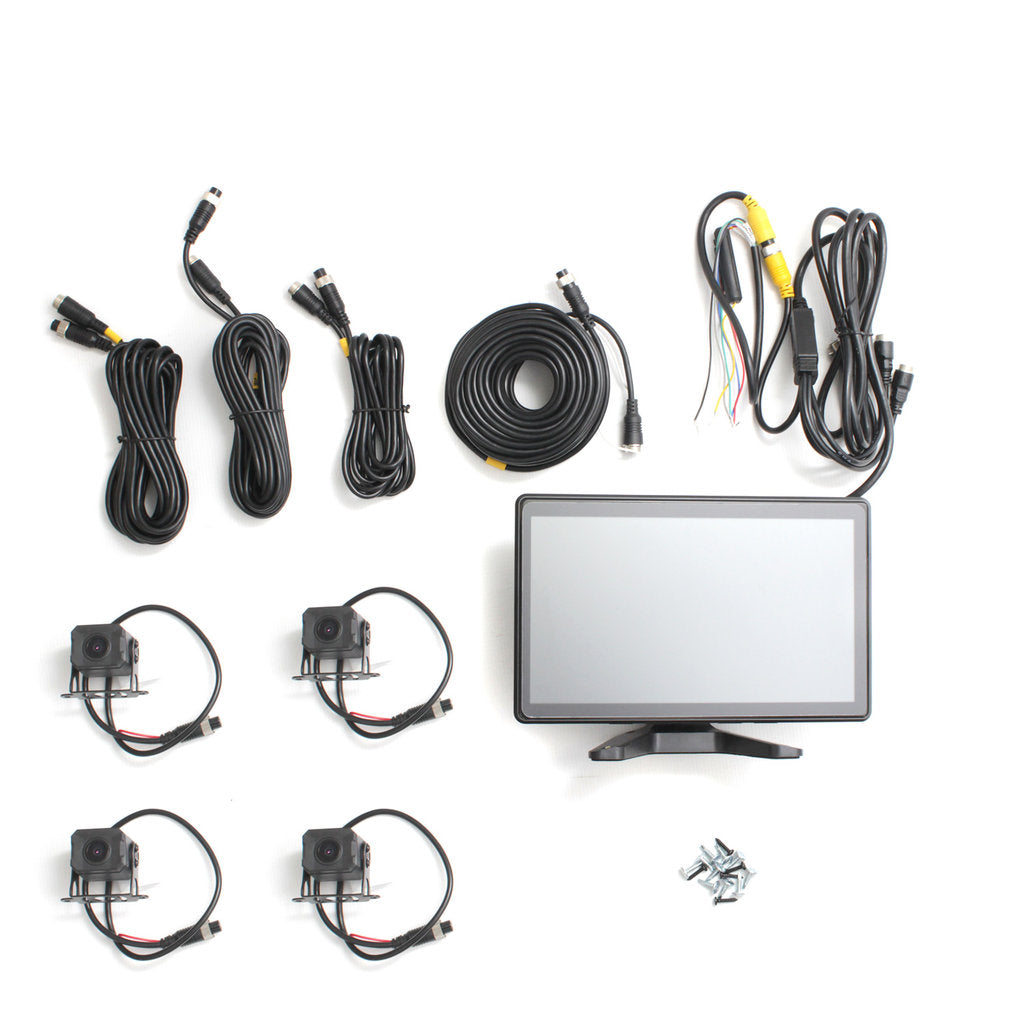

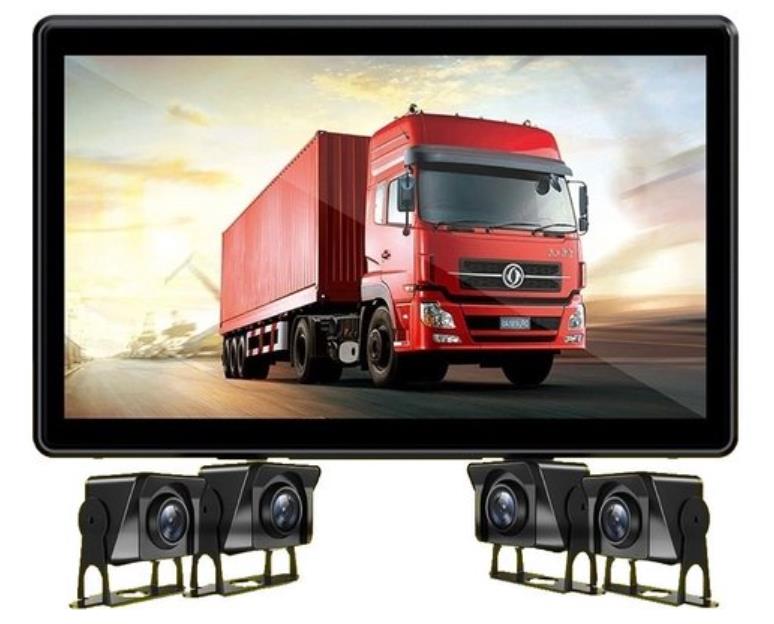

Steelmate C40 is a practical multi-camera safety solution for fleets, work trucks, vans, and other commercial vehicles. It combines a C40 multi-camera recorder, a 10.1-inch LCD monitor, hands-free voice control, and AI blind spot detection in one integrated system.
Designed for drivers who need better visibility and faster awareness, this 4-camera dashcam setup helps monitor the road, surrounding lanes, and rear areas with clear, continuous coverage.
Four-channel recording with a built-in monitor
The system records from all four cameras through the built-in screen, making it easier to review incidents as they happen. Each channel is saved separately, and recording begins automatically when the ignition is switched on.
-
720p AHD cameras on all four channels
-
30fps recording for smoother video capture
-
10.1-inch LCD monitor with touch operation

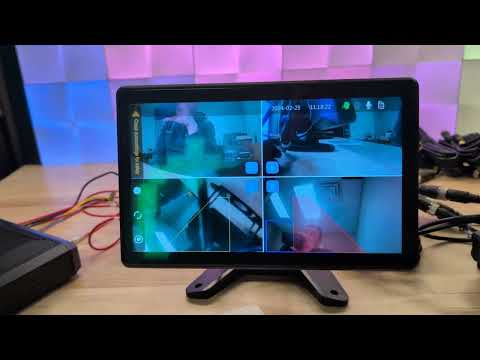

- Split-screen viewing options for 2-way or 4-way display
- Automatic file separation by camera channel
Hands-free voice control for safer operation
Voice commands let the driver control key functions without taking attention away from the road. That means you can change views, manage audio, or switch the screen state by speaking simple commands.
Common voice functions
- Turn the screen on or off
- Mute or restore audio
- Show the front camera
- Show the rear camera
- Display both cameras or return to a split view
For busy commercial driving environments, this kind of hands-free control adds convenience while supporting safer day-to-day operation.

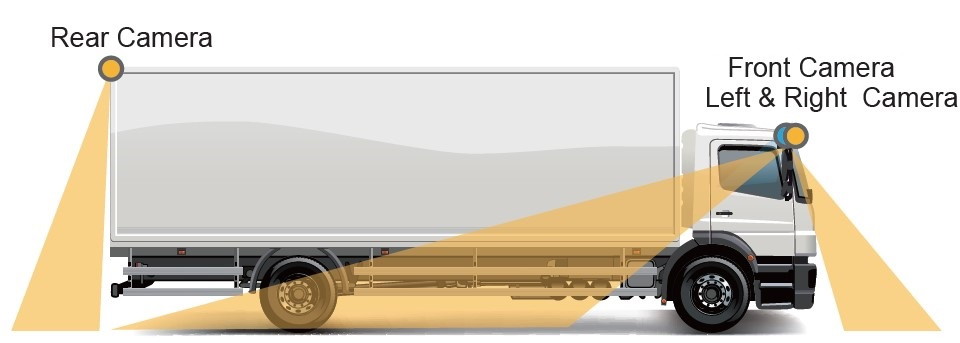

AI blind spot detection for commercial vehicle awareness
The side cameras use intelligent detection to identify nearby moving people and alert the driver when activity is detected in the blind spot zone. This makes the system especially useful when manoeuvring in tight areas, reversing, or working around pedestrians and obstacles.
The camera package is also built for usable footage in difficult lighting conditions, with a wide 160° viewing angle and image performance suited to early mornings, late evenings, and enclosed work sites.
Built for fleets, trucks, and heavy-duty use
The Steelmate C40 is a strong fit for commercial applications where visibility matters. It is well suited to:
- Delivery vans
- Commercial trucks and rigs
- Agricultural equipment
- Construction machinery
- Trailer and fleet installations
Because the cameras are compact, installation is easier in a wide range of vehicle layouts. The system also supports additional AHD cameras if your setup requires more flexibility.
Installation notes to know
- Use the M12 flexi cable for truck and trailer applications
- CH3 and CH4 can trigger automatic split-screen display when wired to 12/24V
- Continuous recording and on-screen playback help review events right after they occur
This makes the AI blind spot detection system especially useful for operators who need dependable coverage, simple playback, and a clear view from the cab.
Frequently asked questions
Can the monitor be controlled without using the touchscreen?
Yes. The system supports voice control, so several core functions can be managed hands-free while driving.
Does the system record automatically?
Yes. Recording starts when the ignition is turned on, and each camera channel is stored as a separate file for easier review.
Is this a good fit for work vehicles?
Absolutely. It is designed for commercial vehicles that need reliable multi-angle visibility, including trucks, vans, rigs, and off-road equipment.
Upgrade your vehicle visibility today
If you want a smarter way to monitor the road, reduce blind spots, and simplify incident review, the Steelmate C40 delivers a complete solution in one package. Contact Lockdown Security to order your kit or get help choosing the right installation accessories for your vehicle.
