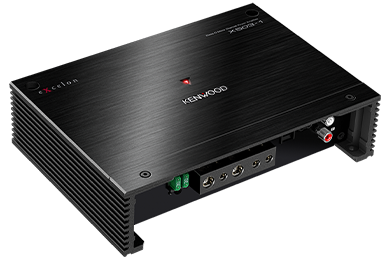

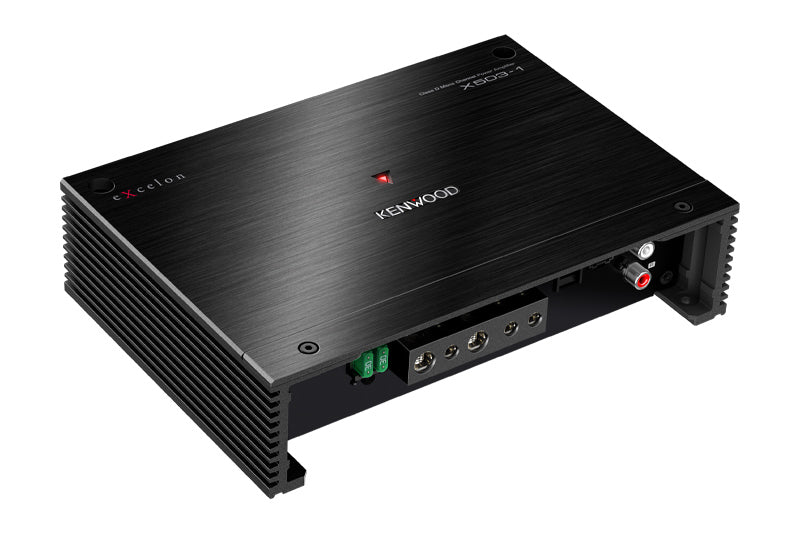

The Kenwood eXcelon X503-1 is a mono Class D subwoofer amplifier rated 500 watts RMS at 2 ohms (300 watts at 4 ohms).
Speaker-level inputs with signal-sensing turn-on let it work with a factory stereo. A wired bass level remote is included. As an eXcelon amplifier it carries Kenwood's 2-year warranty.
Key features
- eXcelon mono sub amp, 500W RMS at 2 ohms, 300W at 4 ohms
- Wired remote bass level control included
- Variable low-pass filter, 25Hz infrasonic filter and 40Hz bass boost
- Speaker-level input harness included; signal-sensing turn-on
- Shielded output coil and polymer capacitors for lower noise
Specifications
| Channels |
1 (mono) |
| Class |
D |
| RMS power, 4 ohms |
300W x 1 (CTA-2006-D) |
| RMS power, 2 ohms |
500W x 1 |
| Max power |
1000W |
| Inputs |
RCA 0.2-5.0V; speaker-level 4.0-12.0V |
| Crossovers |
LPF 50-200Hz, -24dB/oct; infrasonic filter 25Hz, -24dB |
| Bass boost |
40Hz, 0 to +18dB |
| Remote |
Included wired level control |
| Hi-Res Audio certified |
No |
| Fuse |
30A x 2 |
| Current draw |
28A |
| Wire terminals |
Power/ground terminals accept 4-6 AWG; speaker terminals 8-16 AWG |
| Size (W x H x D) |
213 x 53 x 149 mm (8-3/8 x 2-1/16 x 5-7/8 in) |
| Weight |
1.5 kg (3.3 lb) |
| Warranty |
2-year Kenwood warranty |
Questions
Will it work with my factory stereo?
Yes. It has speaker-level inputs and turns on automatically when it senses a signal, so it can run from a factory radio.
What wiring kit do I need?
That depends on the amp's current draw (28A) and where it goes in the vehicle. We'll match the right gauge power kit and fuse when you book the install.
Do you install amplifiers?
Yes, at our Markham shop. We run the power wire to the battery with a fuse, set the gains and crossovers, and test the system before you leave.
