Audi Factory Radios - Which one do you have?

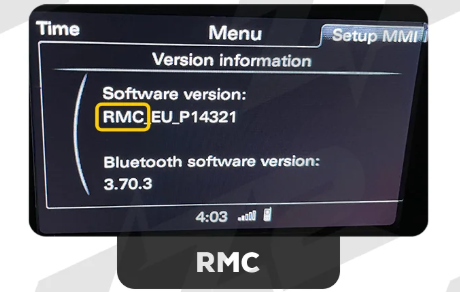

RMC Radio

Note: For A6, S6, A7, S7 vehicles must verify that they equipped with the Audi RMC system (internal hard disc drive). Please follow the procedure below:

1. Press "Setup" or "Menu" button on the radio
2. Go to "Settings"
3. Scroll down to "Version Information"
4. Look for first letters and numbers of Software Version: (e.g. HNav_XX_XXXXX_XX) for any presence of 'RMC' anywhere in the text.

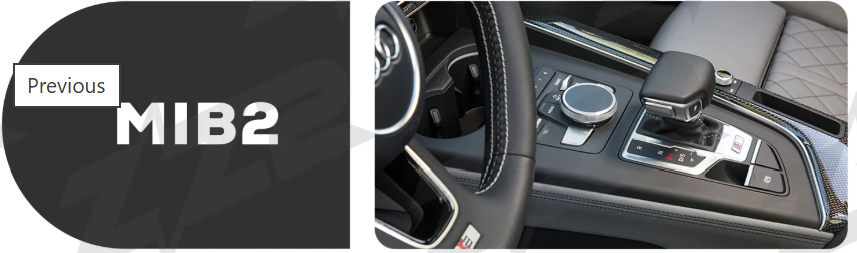

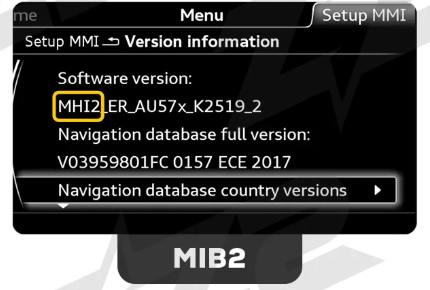

MIB2 Radio

1. Press the [MENU] or [SETUP] button on the center console.
2. Select Settings (sometimes found under the 'Car' or 'System' menu).
3. Scroll to the bottom and select 'Version Information'

Please see the images below for what the 5.3" and 7" MIB2 radio looks like, and for what the 8.3" MIB2 radio looks like:

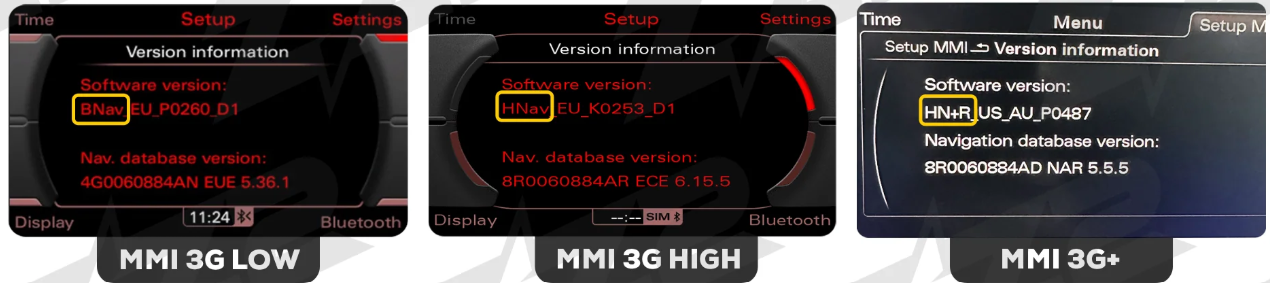

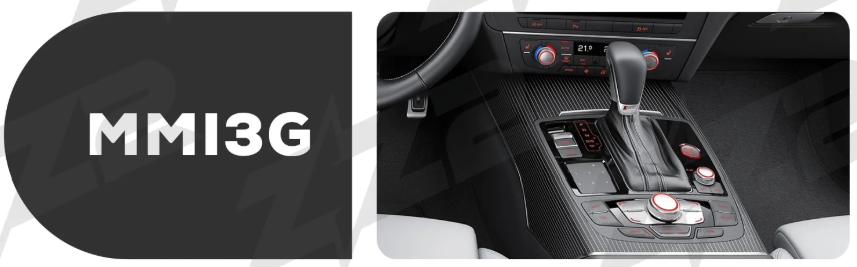

MMI3G Radio

Press the [MENU] or [SETUP] button on the center console.

Select Settings (sometimes found under the 'Car' or 'System' menu).

Scroll to the bottom and select 'Version Information'

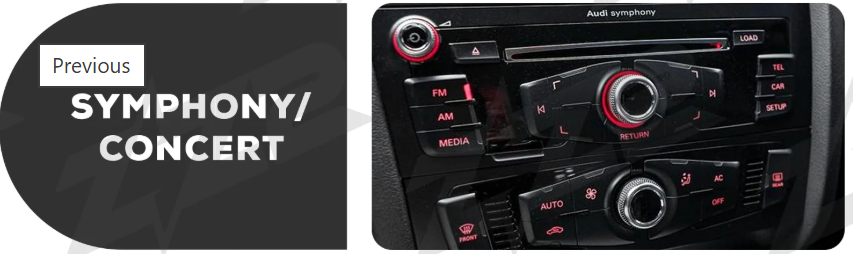

Symphony & Concert Radios

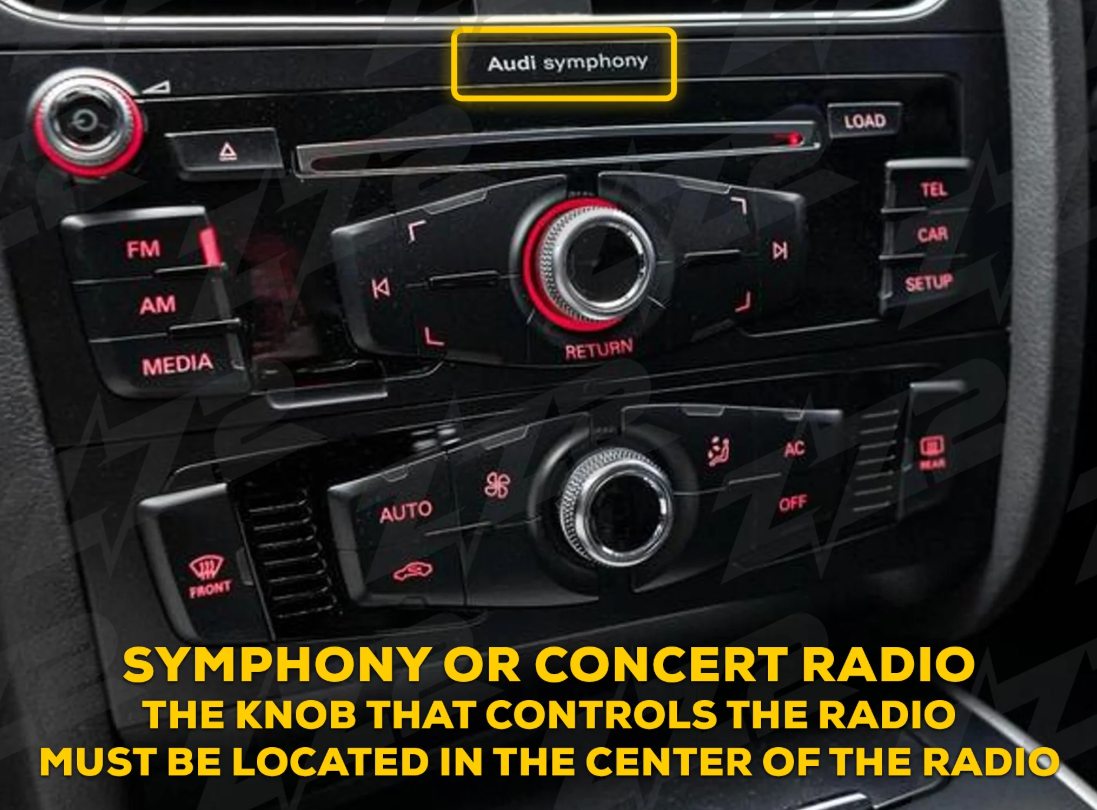

You can determine that you have the Audi Symphony or Concert radio as it will be written on the top face of the factory radio.

Also, the knob that controls the radio will be located in the center of the radio.
