Amplifier Input Voltage - What does this mean?
Shopping for an amplifier and seeing ratings for amplifier input voltage? Wondering what this means?
Well, the short answer is the input voltage rating is what the amplifier can handle in terms of audio signal input, whether on the RCA input side, or (where stated LOC) on it's built-in line input converter side.
The higher the input voltage rating, the more flexibility you have for integrating the amplifier into OEM (factory audio) systems. Most new vehicles today are coming equipped with advanced, high power factory amplified audio systems, that, produce a high wattage (and therefore high voltage), audio output. If you attempt to use these high wattage, high voltage factory amplifier outputs on your new amplifier's input, and the new amplifier (or line output converter) is not rated for a high voltage input, then, you will damage the input (as it cannot handle the power).
⚠️ Important Note: If you are tapping into a premium factory-amplified system that outputs more than 10V, you will overload the line output converter or amplifier inputs. In that specific scenario, you will need to use an external line output converter (like a Kicker KEYLOC or an AudioControl LC2i, or Wavtech LOC's) that are rated to handle higher voltages (up to 40V) before sending the dialed-down signal to the new amplifier you intend to install.
Learn more below:

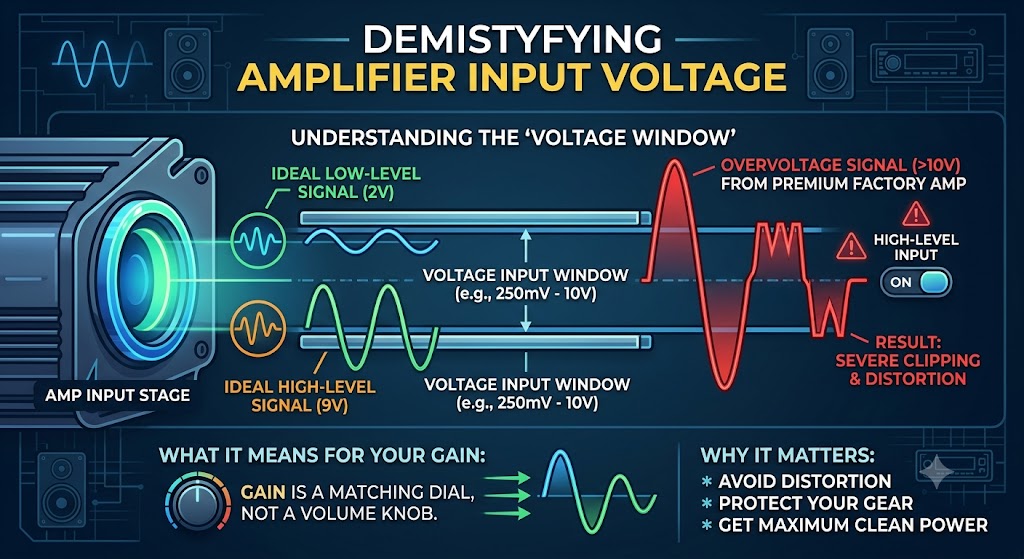

The Two Types of Input Signals
Amplifiers typically deal with two different voltage worlds:
Low-Level (RCA) Inputs: This is the clean, unamplified audio signal from an aftermarket radio. It usually ranges from 200mV to 4V (sometimes up to 5V or 6V).
High-Level (Speaker-Level) Inputs: This is the signal that has already been amplified to power speakers (like the wires coming out of a factory radio). These voltages are much higher, typically ranging from 2V up to 10V, 30V, or more.
The Minimum Rating (Sensitivity Threshold)
The lowest number in the spec sheet (e.g., 250mV) is the minimum amount of voltage the amplifier needs to see to reach its full power output.
If your radio outputs a signal weaker than this minimum, the music will sound incredibly quiet, and the amplifier won't be able to do its job properly.
The Maximum Rating (The Ceiling)
The highest number (e.g., 40V) is the maximum voltage the amplifier’s internal circuitry can handle before bad things happen.
If you stay under the max: The amplifier can cleanly process the signal.
If you exceed the max: The input stage of the amplifier will get overwhelmed. This causes clipping (nasty digital distortion), triggers the amp's protection mode, or can even physically damage the amplifier’s internal components.
What is the "Gain" knob actually doing?
A common misconception is that the gain knob is a volume control. It isn't! The gain knob is a matching dial. > 🎛️ The Goal of Gain: You use the gain knob to match the amplifier’s input sensitivity to the exact voltage your radio is sending down the wires. If your radio sends a 4V signal, you adjust the gain so the amplifier expects a 4V signal. This ensures maximum volume with zero distortion.
